Sold

"CELIE"

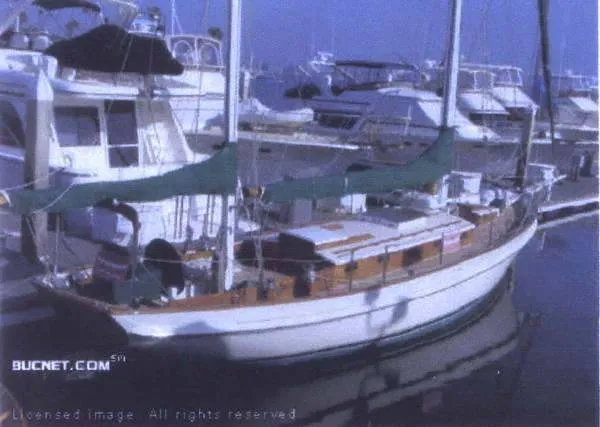

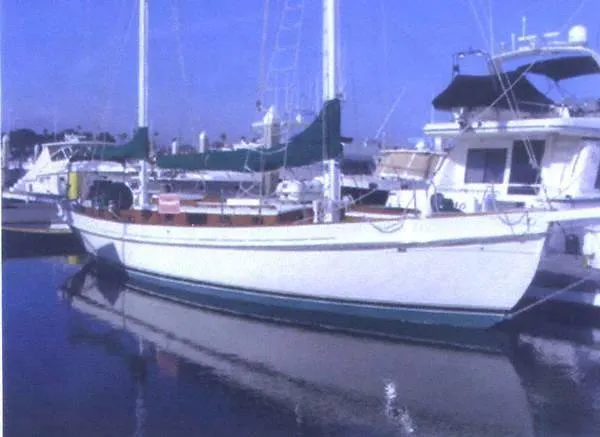

1953 Joel J. Johnson Classic Ketch

Newport Beach, CASail39'
Share

Specifications

MakeJoel J. Johnson
ModelClassic Ketch
Length39'
Beam10.83'
Year1953
TypeSail
HullWood
Fueldiesel
Cruise5.5 kts
Max Speed6 kts
Water Capacity100 gal

Description

Welcome Aboard

A beautiful Heritage traditional yacht. "Celie" has been well maintained and is in excellent condition.

She is narrow, deep, and lofty and she is a good traditional sailor. She is in "Bristol" condition with new teak deck overlay, bright varnished cabin sides, coamings, rails and transom, newly painted cabin top with non-skid, and gleaming yacht-white topsides, bulwarks and waterways. Topsides have been epoxy saturated. The rig was recently repainted.

Overall length is 51'6" and the length on deck is 40'1".

A true wooden classic diesel auxiliary ketch. "Celie" is an absolute " MUST SEE" to believe yacht.

MAJOR PRICE REDUCTION - OWNER WANTS IT SOLD - A GREAT DEAL

Dimensions

Length Overall: 51'6" LOD: 40'1"
Max Draft: 5'6" Estimated
Displacement: 23,140 lbs.

Engines

Total Power: 50

Tanks

Fuel: 90 gallons estimated
Holding: Yes

Accommodations and Layout

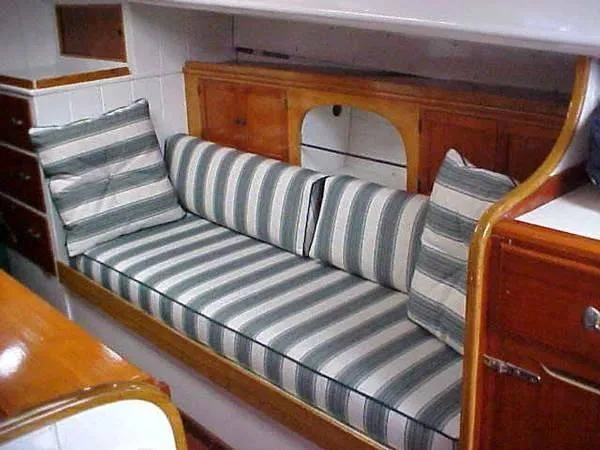

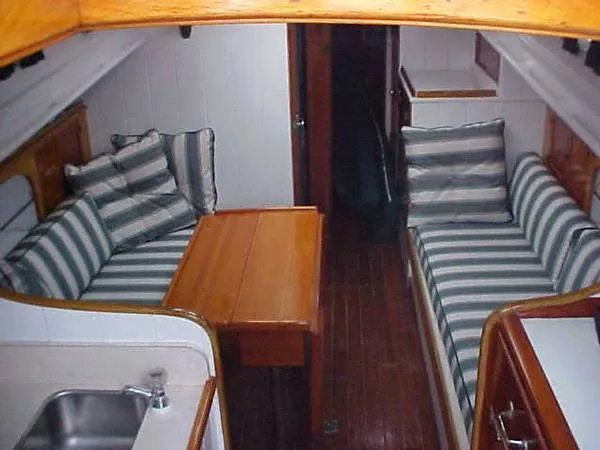

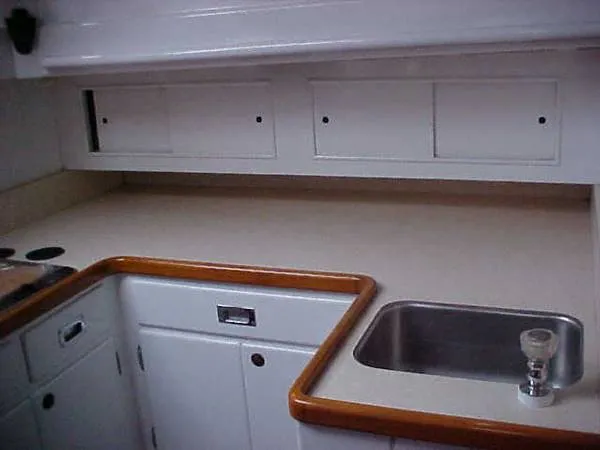

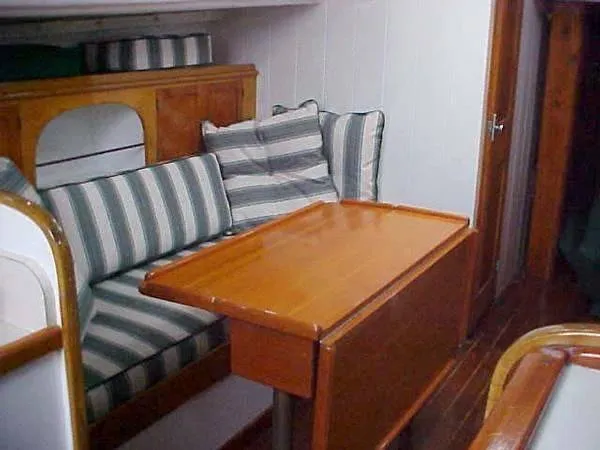

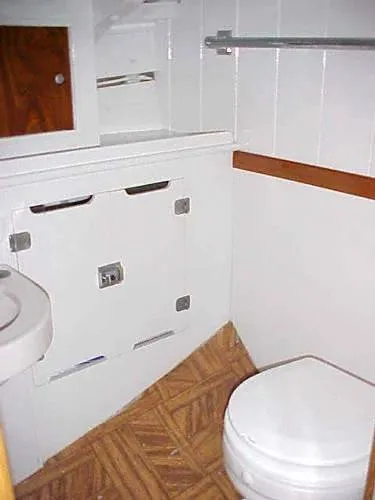

The interior layout is very truly traditional to her times. The galley aft appears original except for the modern stove top equipped with a two burner alcohol Origo stove. Across to starboard is a large stand up chart table. Ample room is had in the salon area with drop down table. The salon has port and starboard settees with one side converting to a double berth. Going forward, the enclosed head is to port, then forward to a split V-berth with a low overhead. Interior finishes and appointments have been newly re-done with the exception of original fixtures.

Vessel is capable of accommodating five persons.

Electronics & Navigation

  • 1) Icom M-59 VHF.
  • 2) Apelco 15 hand held GPS (mounted).
  • 3) Raytheon/Pathfinder R-70 radar chart plotter.
  • 4) Raytheon ST60-Wind speed-direction.
  • 5) Raytheon ST60-Depth/speed log.
  • 6) 5" Danforth Constellation portable compass.

Electrical

  • 1) Two 8-D 12 volt batteries in two banks.
  • 2) 12 vdc system.
  • 3) 110 vac system.
  • 4) Cabin lights.
  • 5) Spreader lights.
  • 6) Navigation lights.

Sails and Rigging

Sails:
  • 1) Dacron main.
  • 2) Dacron mizzen.
  • 3) Dacron roller furling genoa.

    Rig:

  • 1) Single spreader Bermudian ketch.
  • 2) Bow sprit.
  • 3) Jumbers on main mast.
  • 4) Tapered laminated spruce spars.
  • 5) Bronze fittings, turnbuckles and chain plates.
  • 6) Stainless I-19 stainless steel standing rigging with staylock ends.

Deck and Hull

Hull: Wood, carvel planked on frame, heavy scantlings. 5"x1-1/8 " spiled Port Orford cedar, bronze screwed. Full cedar ceiling. Frames: 2"x2" bent white oak on 14" centers. Floors: 2-1/2" oak.

Stem/Hornetimber/Sternpost: 8 inch oak.

Keel: Bronze bolted.

Rudder: Bronze post.

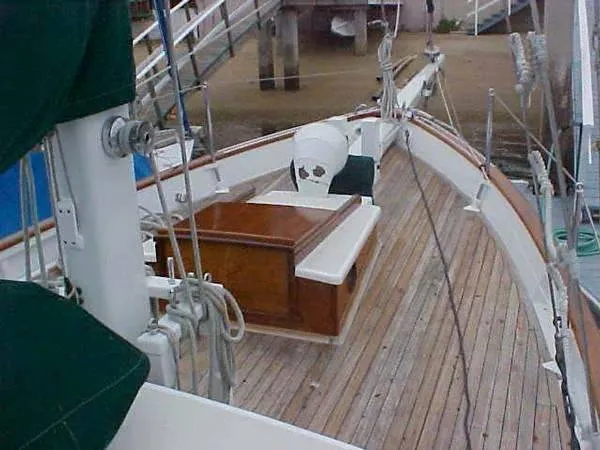

Deck: Original decking 1-1/4x1" laid caulked teak, covered with fiberglass over 3/8" marine plywood and glued laid and 3/8" teak (no fasteners).

Cabin: 1-1/4" solid teak.

Cabin Top: Fiberglass over marine ply on swan oak beams.

Cabinetry: Marine plywood and bright teak, teak sole.

NOTE: Topsides have been epoxy saturated.

Other:

  • 1) Manual windlass.

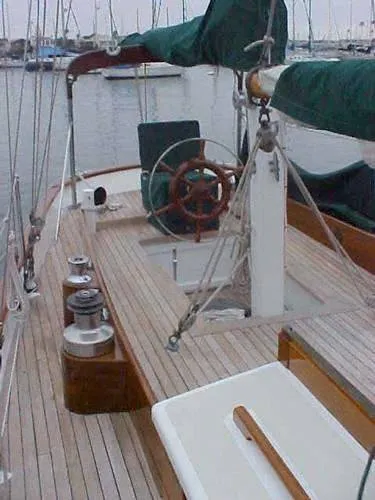

  • 2) Steering: Wheel via single worm gear unit to bronze post.

Engine and Mechanical

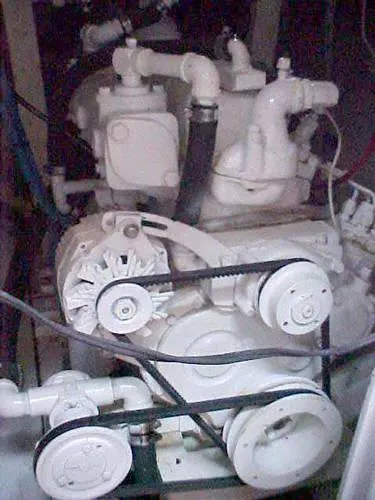

Engine:Waukesha 4 cylinder 50hp diesel engine, Model 1800LC. Fresh water cooled. Wet exhaust. Racor fuel filters.

Drive: Hydraulic actuated marine reverse reduction gear. Three blade bronze fixed propeller. Stainless steel shaft. Engine Hours: 290 by meter.

Working Area: Down companionway and aft to starboard through a show piece varnished entry door to a full work around engine area.

Additional Comments

SAFETY GEAR: 1)Two five pound portable dry chemical fire extinquisher. 2)Three pound Halon automatic engine compartment extinquisher. 3)Eight Type IV personal floation jackets. 4)Strobe. 5)Air horn. 6)Ship's bell. 7)Manual Whale gusher. 8)Electric automatic bilge pump. 9)Foot ropes on bow sprit. 10) Stainless steel stanchions with double life lines also port and starboard entry openings.
Additional Gear:
  • 1) All new canvas covers for main sail, mizzen sail, bag for head sail, hatch cover, toe rail cover, wheel cover.
  • 2) Boom gallows.
  • 3) Deck cushions.
  • 4) Ship's clock.
  • 5) Ship's barometer.

    NOTE ONE:The owner recently spent over one hundred and fifty thousand dollars on his boat for new paint, rigging, hardware, canvas package, electronics and extreme routine maintenance.

    NOTE TWO: She was built in 1953 by Joel J. Johnson in Bridgeport, Connecticut and is hull #62 of these beautiful sailing vessels.

    NOTE THREE: Reason for Selling-Owner now lives out of the country and has taken up a different hobby.

    THIS CLASSIC WOODEN KETCH IS DEFINITELY A MUST SEE FOR A YACHTING CONNOISSEUR. CLOSE BY FOR EASY VIEWING.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Engines

Waukesha 1800 LC
0 HPdiesel290 hrs
