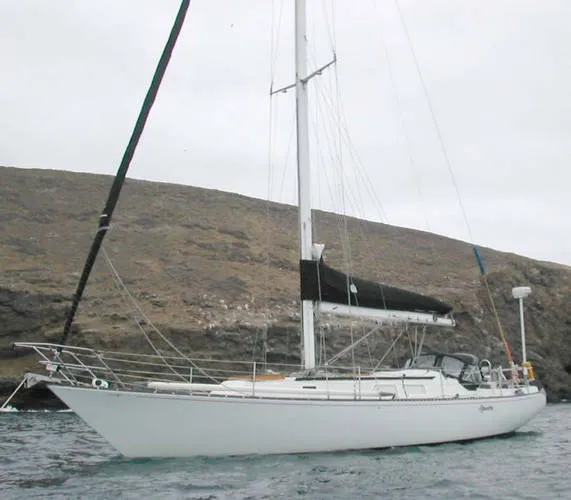

1973 Newport Sloop Rig - Cruiser/Racer

This boat is easily handled by two persons and in fact can be singled handed. Take a moment and look at the full specifications, call and preview. The boat is located in Newport Beach.

Comfortable accommodations for six.

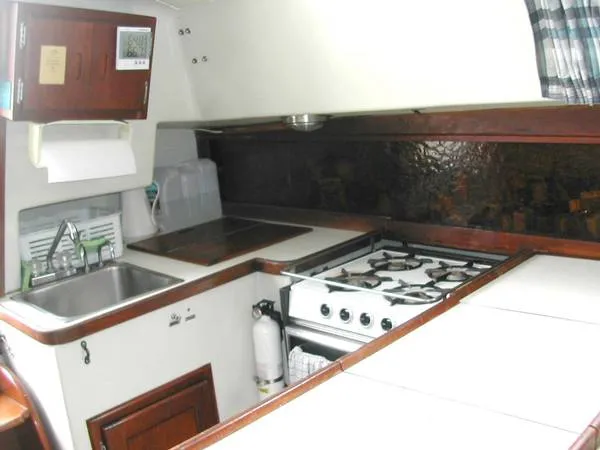

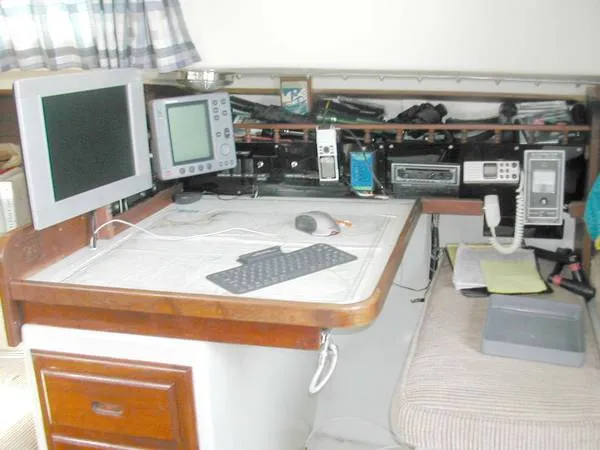

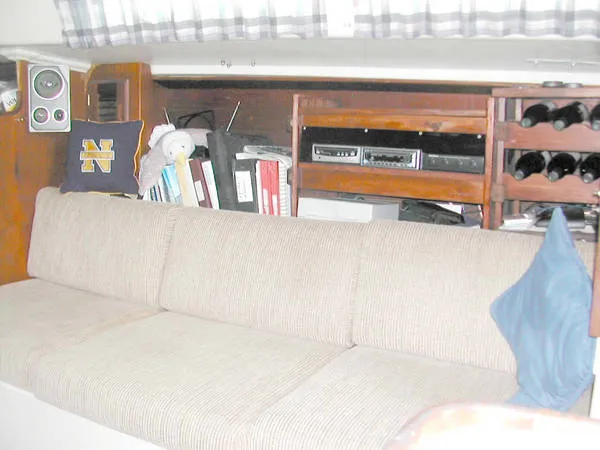

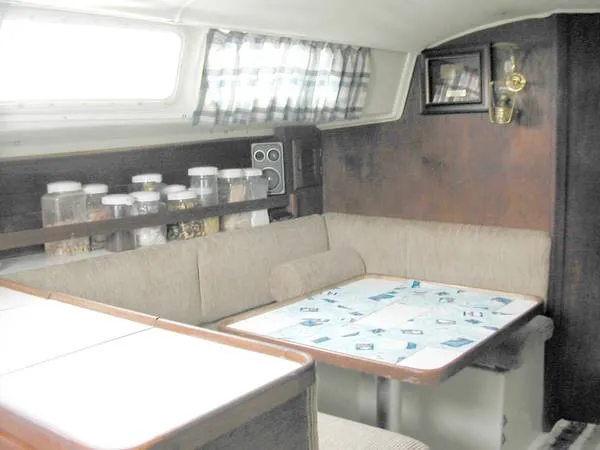

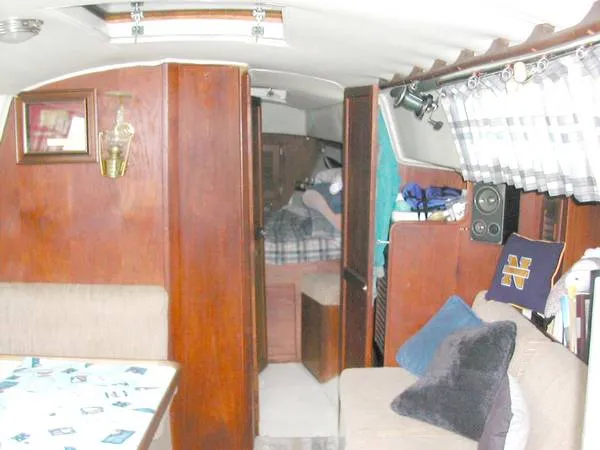

Coming down the companionway to port is the sizable U-shaped galley, then forward to the salon area with an L-shaped dinette table that lowers to a double berth, then forward through the bulkhead to the head with hand held shower, then forward to the double berthing V-berth. Coming aft to starboard and across from the head are two hanging lockers, then aft through the bulkhead to starboard is a settee, followed by the aft quarter berth with nav station on forward edge.

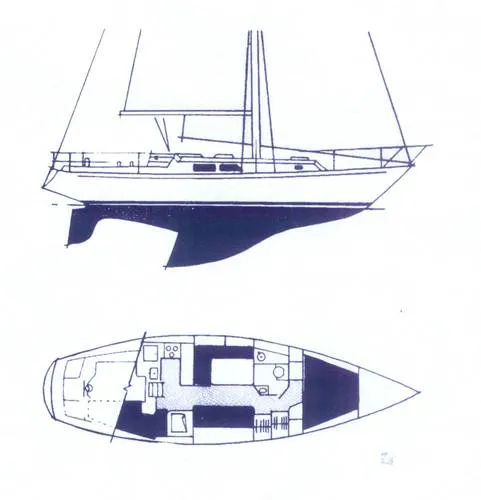

See schematic of interior across the page.

• 1) Top loading ice box with Adler Barbour refrigeration, new December 2001.
• 2) Four burner gimballed propane stove with oven.
• 3) Hot/cold pressure water system.
• 4) Large stainless steel single sink.
• 5) Ample storage space for dry goods, dishes and utensils.
• 6) Excellent counter space.
• 7) Propane shut off valve.
• 8) Separate foot valves for salt or fresh water.

• 1) Standard Horizon Multi depth/speed/log/temperature.
• 2) Standard Horizon wind/speed direction.
• 3) Standard Horizon GPS CP150 chartplotter mounted in cockpit.
• 4) Navico Autopilot, Model WD300CX.
• 5) Raytheon radar.
• 6) Pedestal mounted Ritchie compass.
• 7) Two, one port, one starboard deck/coaming mounted compasses across from wheel helm.

• 1) 110vac electrical system.
• 2) 12vdc electrical system.
• 3) 110v shore power outlet with cord.
• Note: AC & DC wiring replaced in 1997 except for the mast.
• 4) New electrical panel with all new breakers.
• 5) Link 10 battery monitoring system.
• 6) Four 6v house batteries in parallel, 400 Ah.
• 7) One designated engine starter battery 12v - new this year.
• 8) Lewco alternator battery charging system.
• 9) 40 amp AC charging system with remote readout.
• 10) Two 300 watt inverters.
• 11) Fifteen (15) inch flat screen for computer, switches to TV and/or DVD player.
• 12) Kenwood stereo with speaker control for house speakers and three cockpit speakers.
• 13) Navigation lights: Standard port and starboard bow side lights, stern light plus masthead light and steaming light.

• Sails:

• 1) Full batten main, stack pak by Doyle Sailmakers - new February 2002.
• 2) Dacron 135% genoa on Harkin roller furler.
• 3) Dacron drifter.
• 4) Storm main.
• 5) Older main.
• 6) Spinnaker.

  Rigging:


• 1) Standing Rigging: Stainless steel wire, replaced in 1996.
• 2) Running Rigging: Dacron line.
• 3) Boom vang.

  PHRF Rating: 72

Six house ports, forward two open, one port, one starboard. Two opening deck hatches.

Winches-nine:

• 1) Two Barient #28, two speed primary winches.
• 2) One house mounted Barient #22 winch by companionway to starboard.
• 3) A second house mounted Barient #16 winch by companionway to port.
• 4) Three deck mounted winches, aft of mast.
• 5) Two mast mounted winches. one Barient #16, the other Barient #22.

  Windlass:

• Electric windlass with up and down foot pedals.

  Anchors:

• 1) Bow anchor: CQR with 80 feet of chain and 200 feet of rode.
• 2) Stern anchor: Danforth with 60 feet of chain and 200 feet of rode.

Perkins 4-107, 45hp, fresh water cooled diesel installed
in 1987 and rebuilt in December 2002.

• 1) New engine instruments, except tachometer 1999.
• 2) Racor fuel oil filter - new in 2000.
• 3) Three blade fixed prop 12LH7.

• Safety Gear:
• 1) Stainless steel bow pulpit.
• 2) Stainless steel stern pulpit.
• 3) Stainless steel stanchions with double life lines.
• 4) Manual whale gusher.
• 5) Electric Rule bilge pump.
• 6) Man overboard pole with Type IV Horseshoe buoy.
• 7) Ship's bell.
• 8) Olin flare kit.
• 9) Air horn.
• Other Gear:
• 1) 9.5' Westmarine inflatable with 5hp Nissan outboard.
• 2) All new canvas covers in January 2002.
• 3) Hand held hot/cold shower in cockpit area.
• 4) Head macerator system.
• 5) Pedestal mounted wheel.
• 6) Starboard boarding ladder.
• 7) Rail mounted barbecue.
