“ILLUSION”

1986 Hans Christian 38 telstar cutter

Long Beach, CASail38'
Share

Specifications

MakeHans Christian
Model38 telstar cutter
Length38'
Beam12.5'
Draft6.42'
Year1986
TypeSail
HullFiberglass
Fueldiesel
Cabins2
Heads1
Cruise7 kts
Max Speed8 kts
Fuel Capacity50 gal
Water Capacity50 gal

Description

How the 38 Telstar Differs from the 38 Traditional Full Keel Model:  The Hans Christian 38 Telstar cutter is a design of accumulated knowledge by a company that has built many world class cruising yachts. The design improved upon the older 38 Traditional full keel version, and improved the sailing characteristics of performance many fold. The underwater buoyancy was reduced by the Telstar’s modified keel design and mounting the rudder on a reinforced skeg, producing a modified fin keel. This allowed Hans Christian to use the taller rig of the Mark II 38 due to the reduction in buoyancy. At the same time, the lead of the mast was moved forward 12 inches, reducing weather helm greatly. The culmination of the new design resulted in a much higher performing yacht with all the good features of the older 38 T.

Illusion is the kind of boat that seldom comes along. If you as a buyer think about what a boat has to offer, you realize a boat reflects the pride and care of prior owners of the vessel. How the boat was cared for over the years is a major part of the evaluation process. This is reflected in the maintenance log and corresponding documentation, as well as what pieces of equipment are updated and replaced.

Illusion is such a boat. I sold her, new, to the first owner and knew the boat well. She has been well cared for by both the original owners and the current owners.  The boat has had regular maintenance with equipment retired, replaced, or added to take advantage of new technologies. Over the last several years, Illusion has been outfitted with new sails, new electronics, a Forespar Leisure Furl for the main sail, new Lewmar anchor windless, new anchors, a bimini, cockpit cushions, new water tanks, and many comfort items. All working lines are led aft to the cockpit to increase both safety and efficiency. The hull was repainted in 2009, with antifouling paint to the bottom redone in 2012.  Her 62 hp Perkins diesel engine is maintained by one of the best known mechanics in the Long Beach/San Pedro area. Her deep green hull, varnished teak, and tanbark sails make her a beautiful eye-catching yacht.

Notes on Illusion

Additional Specs, Equipment and Information:

Dimensions



LOA: 46 feet

LWL: 33 feet

Beam: 12.5 feet

Displacement: 29000 pound

Bridge Clearance: 55 feet

Ballast: 9800 pound







Cruising Speed: 7 knots

Max Speed: 8 knots

Tankage



Fuel: 100 gallon

Water: 100 gallon

Holding: approx. 20 gallon




Notes on Illusion

ELECTRONICS

  • Dual Raymarine C-90 multifunction displays. One at navigation station and one at helm. Include digital Radar, GPS, overlay of radar on chart plotter.
  • 90 amp alternator with a Belmar MC-612 marine regulator
  • Icom 504 with VHF radio.
  • AIS class B.
  • Raymarine Smart Pilot 7200 autopilot with a type 2 linear drive.
  • All electronics are linked through sea talk system. They are in like new condition and work well.

ENGINE/BATTERIES/INVERTER

  • Perkins 4-134 auxiliary diesel, (FWC) 2000 hours total hours.
  • Regular maintenance includes yearly or every 100 hours oil change, monitor exhaust systems, belts, injectors, cooling system, et al.
  • Direct drive w/ 3 blade bronze prop.
  • 2 8D 245 amp/hr each AGM house batteries
  • 2 GPL-27T starter batteries
  • Freedom 20 Inverter/charger with Heart Link 2000

RIGGING AND SAILS

  • Forespar Leisure Furl boom furling system with full batten furling.

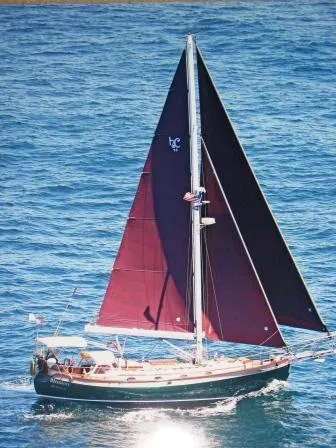

  • North tanbark sails new in 2007, an additional $ 4,000.00 option.
  • Harken furling on Genoa and staysail.
  • Mainsheet traveler redesigned with controls in cockpit.
  • Forespar hard vang.
  • 2007 new head stay and back stay, other standing rigging surveyedand found in good condition.

HULL/BOAT FEATURES

  • Refrigerator with both top and front-loading doors
  • Microwave oven
  • 3-burner propane stove/oven
  • Ritchie 5 inch compass at helm.
  • Hot and cold pressure water.
  • Two course lifelines with gates.
  • Teak decks and teak cabin deck inserts.
  • Dual mast pulpits adjacent to main mast with storage boxes and pit rails.
  • Large freeing ports with line horns.

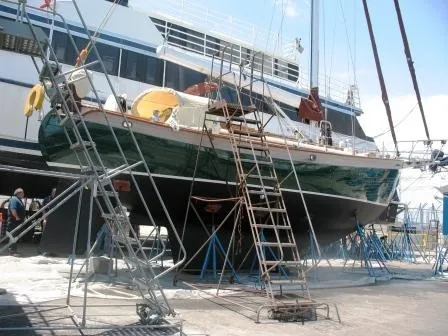

  • 2009 Repainted in Awlgrip "jade mist" green at Gambol yard.
  • Bottom last painted in June 2012 with Seahawk AF33 (black)
  • Small hot water tank

ADDITIONAL ITEMS

  • Shakespeare SeawatchTV antenna mast mounted.
  • Tri-Lens Radar reflector on mast.
  • LED lighting for running lights and anchor light.
  • Both water tanks replaced with high grade stainless steel tanks 2008.
  • New 2010 Lewmar anchor windlass replaced old windlass.
  • 45# Delta anchor on starboard bow with 240’ 3/8 chain and 210’ rode.
  • 35# CQR anchor on the port side with 50’ 3/8 chain and 250’ rode.
  • 25# Danforth on the stern with 30’ chain and 270’ rode

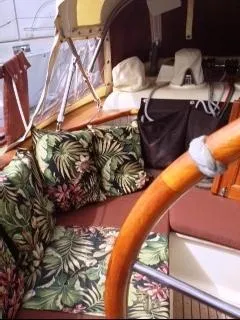

  • New Sunbrella cockpit cushions by Harbor Custom Canvas
  • Bimini top in cockpit with dodger.
  • Outboard motor mount and lift in cockpit area.
  • New TV in Saloon.
  • Small TV in forward VEE berth.
  • Stereo system with cockpit speakers.
  • Bronze port lights that open around cabin


disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Engines

PERKINS 4-154
60 HPdiesel1,800 hrs
