“"Lapras"”

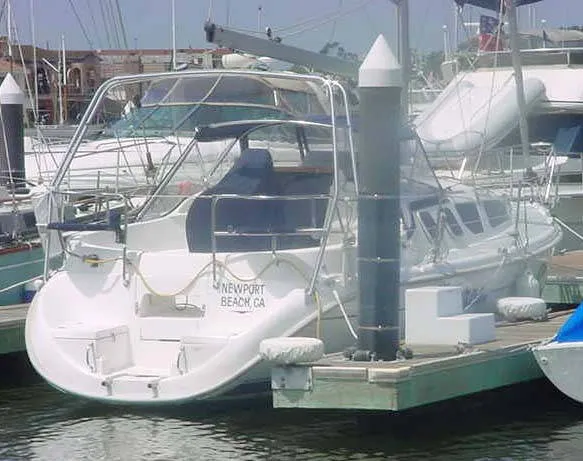

2000 Hunter 320
Newport Beach, CASail32'
Share
Specifications
MakeHunter
Model320
Length32'
Beam10.83'
Draft5.83'
Year2000
TypeSail
HullFiberglass
Fueldiesel
Cruise6 kts
Max Speed7 kts
Fuel Capacity28 gal
Water Capacity50 gal
Description
The creative layout boasts two private state rooms with solid privacy bulkheads. A spacious well designed salon abounds with plenty of seating and storage. The teak trimmed galley offers two burner propane stove with oven and broiler as well as an Orico microwave oven, top loading ice box, stainless steel sink, hot/cold pressure water and ample storage for dry goods, dishes and utensils.
You will be surprised by the size of the aft cockpit with it's rounded coamings, easily accommodates six plus two on corner stern pulpit seats. Excellent for after the sail entertaining.
Roller furling main to mast and roller furling jib. An easy to handle sailboat.
Driven by Yanmar two cylinder, fresh water cooled 18hp diesel engine, Model 2GM-20-93.
Dimensions
Displacement: 8,550 lbs.
Engines
Total Power: 18
Tanks
Holding: 24 gals. styrene plastic

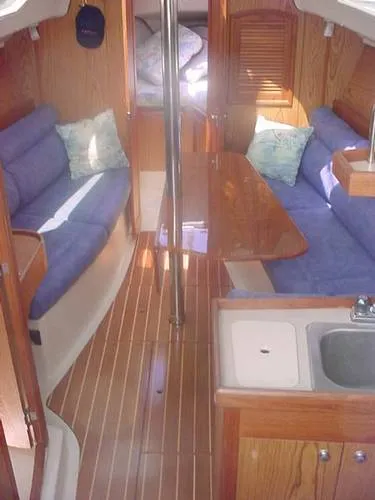

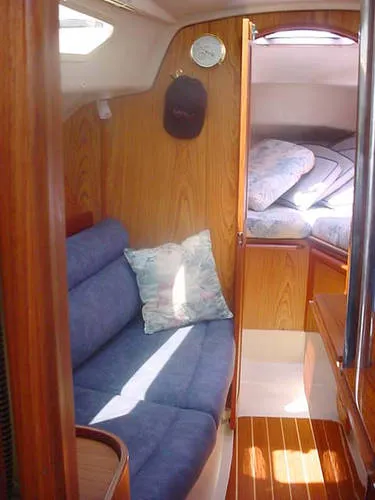

Accommodations and Layout

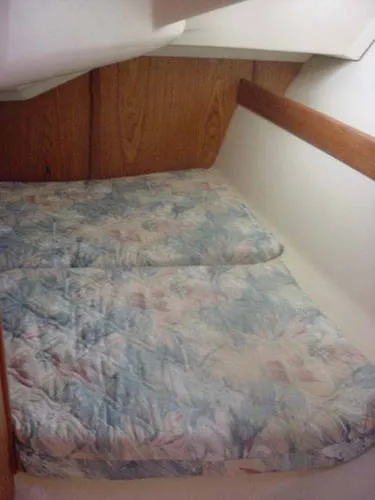

Berthing for six in three compartments.
The comfortable living conditions, the teak trim and panelling add to the nautical ambiance of the interior decor.

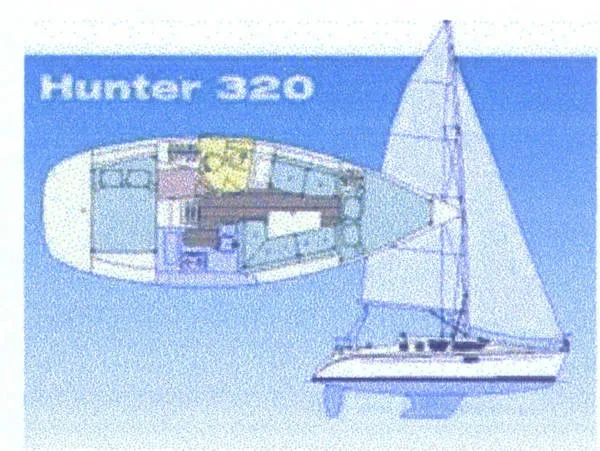

See schematic of interior across the page

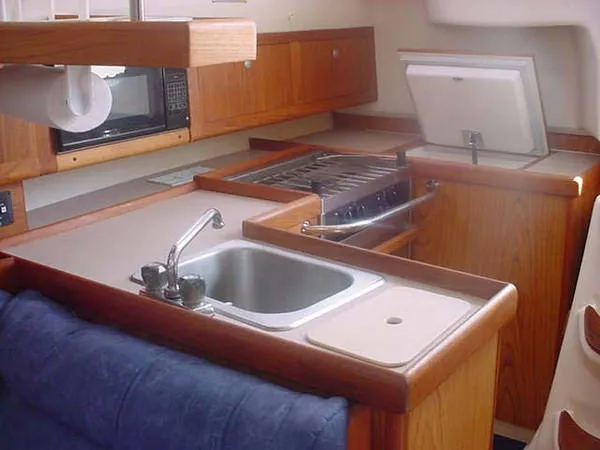

Galley
Coming down the companionway, the the nicely laid out U-shaped galley is to starboard and is equipped with:
- 1) Force 10 propane two burner stove with oven and broiler.
- 2) Orico microwave oven.
- 3) Top loading ice box.
- 4) Ample storage for dry goods, dishes and utensils.
- 5) Stainless steel sink.
- 6) Hot and cold pressure water.
Electronics & Navigation
Well equipped for local sailing and near offshore cruising. She is equipped with:
- 1) Furuno 1622 LCD 16 NM radar.
- 2) Garmin 185 depth sounder.
- 3) Garmin 185 GPS/Plotter.
- 4) Raytheon Standard 4000 autopilot.
- 5) Raytheon Ray 52 VHF.
- 6) Autohelm Fathom meter.
- 7) Three inch Suunto pedestal mounted compass.
Electrical
- 1) 12vdc electric system.
- 2) 110vac electric system.
- 3) Two group 27 - 12 volt batteries in two banks.
- 4) 120vac shore power system, multi marine battery charger.
- 5) 120vac fresh water heater (engine heat backup).
- 6) DC voltmeter.
- 7) USCG required navigation lights.
- 8) Cabin lights.
- 9) Shore power outlet with cord.
- 10) JVC stereo: CD-AM/FM.
Sails and Rigging
- Sails:
- 1) Dacron roller furling main.
- 2) Roller furling dacron jib on Furlex 1000 furler.
Rigging:
- 1) Standing Rigging: Swaged 1x19 stainless steel wire.
- 2) Running Rigging: Dacron line.
- 3) Clear aluminium spar and boom with internal roller furling to mast.
Winches:
- Two Lewmar #30, all purpose two speed, self tailing winches.
Deck and Hull
Description:
1) Color white.
2) Plumb bow.
3) Open reversed transom stern.
4) Straight sheer.
5) Raked fin keel.
6) Separate spade rudder.
7) Trunk cabin.
8) Double swept spreader , fractional Marconi rig.
1) Color white.
2) Plumb bow.
3) Open reversed transom stern.
4) Straight sheer.
5) Raked fin keel.
6) Separate spade rudder.
7) Trunk cabin.
8) Double swept spreader , fractional Marconi rig.
- Construction:
- Hull:Hand laminated fiberglass in a female mold, end grain balsa cored.
- Deck:Hand laminated fiberglass end grain balsa cored with molded in non-skid.
- Cabin:In deck molded.
- Cabinetry:Molded pan, teak wood, teak and holly sole.
- Keel:Bolt on keel to stubby.
- Rudder:Fiberglass over foam on stainless steel post.
Ground Tackle:
- 1) 13 pound Hooker bow anchor with 30 feet of chain and 150 feet of rode.
- 2) Electric windlass.
- 3) Bow roller.
Pumps:
- 1) Manual whale gusher.
- 2) Electric automatic bilge pump.
- 3) Electric/automatic fresh water pressure demand system.
- 4) Electric salt water system.
- 5) Electric macerator waste discharge system.

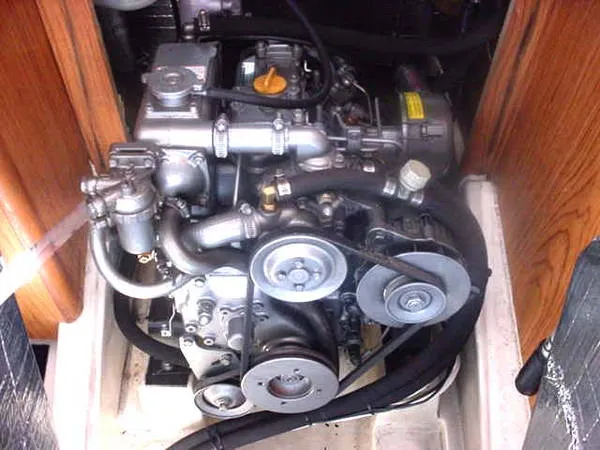

Engine and Mechanical
- 1) Yanmar two cylinder, fresh water cooled 18hp diesel engine, Model 2GM-20-93.
- 2) Wet exhaust.
- 3) Location: Compartment under cockpit and companionway.
Additional Comments
- Safety Gear:
- 1) Stainless steel bow pulpit.
- 2) Stainless steel stern pulpit with folding swim ladder and opens to a two step swim platform.
- 3) Stainless steel stanchions with double life lines.
- 4) Manual Whale gusher.
- 5) Electric bilge pump.
- 6) Four Type II lifejacets.
- 7) Two 2.5lb Kidde dry chemical fire extinguishers.
- 8) Emergency tiller.
- 9) Olin flare kit.
- 10) Air horn.
- 11) Remote LPG solenoid valve.
- Other Gear:
- 1) New dodger with side boarding grab rails.
- 2) Aft cockpit sun awning.

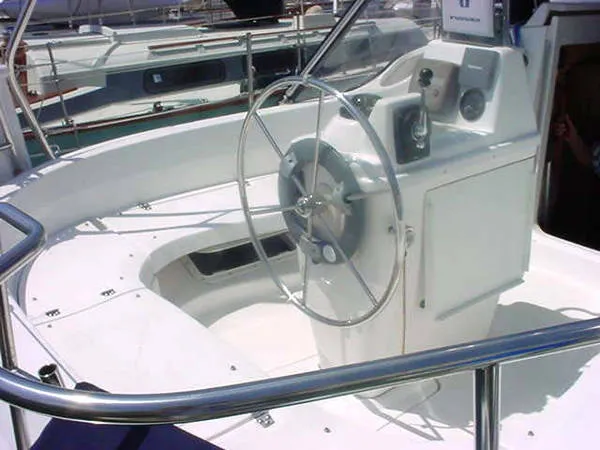

- 3) Pedestal mounted wheel.
- 4) Stainless steel pedestal guard.
- 5) Cockpit cushions.
- 6) Cockpit table.
- 7) Drink caddy.
- 8) Main sheet traveler arch.
- 9) Boom vang.
- 10) Weems & Plath barometer.
- 11) Weems & Plath ship's clock.
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Engines
Yanmar 2GM20-93
