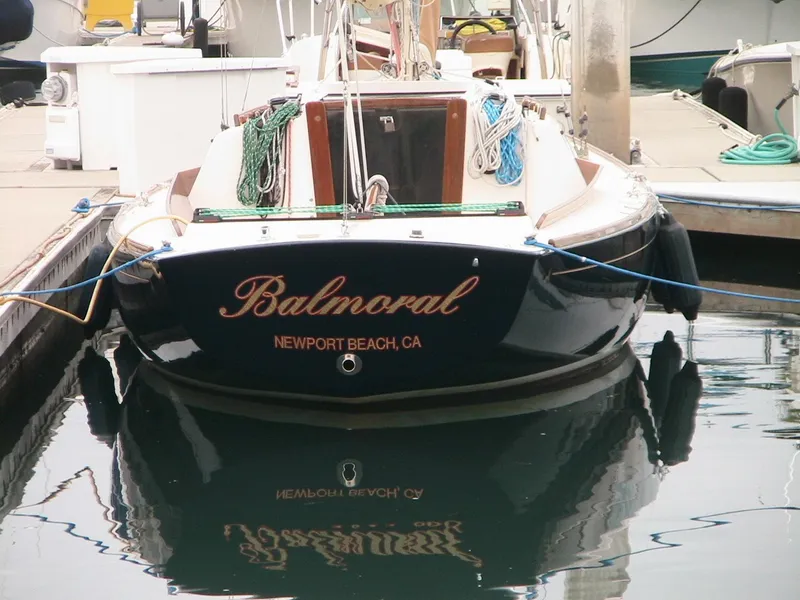

“Balmoral”

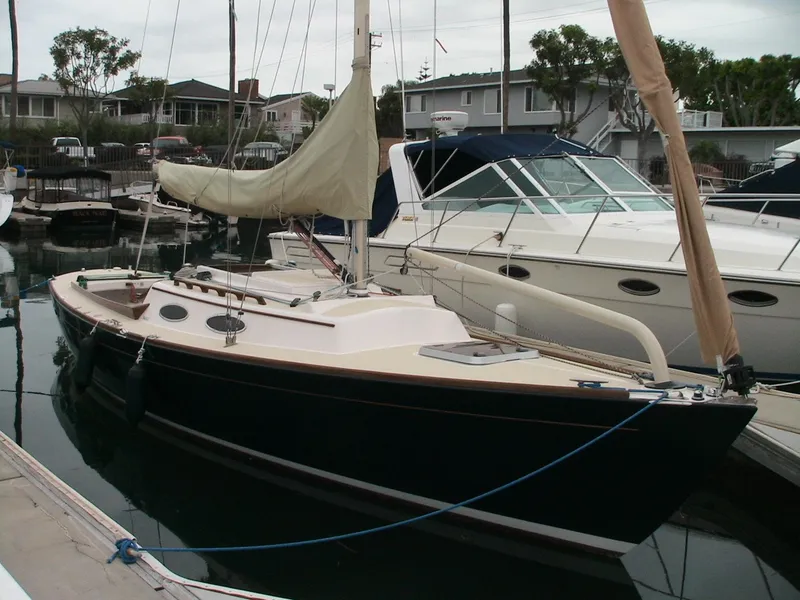

2009 Alerion Express 28

Newport Beach, CASail28'
Share

Specifications

MakeAlerion
ModelExpress 28
Length28'
Beam8.17'
Draft4.5'
Year2009
TypeSail
HullFiberglass
Fueldiesel
Fuel Capacity8 gal
Water Capacity6 gal

Description

PRICE JUST REDUCED OVER $5,000

Orininal owner ... Absolutely Stunning!!! Once in a while a boat will come the market that is a TRUE TEN ... This one is it.

Overview

Sails & Rigging

  • PRICE JUST REDUCED OVER $5,000
  • Hoyt Jib Boom w/Extender (self tacking)
  • New (2014 Ullman Mainsail (larger and deeper than original)
  • New (2014) Ullman Jib w/sock (40% lighter than original)
  • Mast and Both Booms Reconditioned in 2015
  • North sails Dacron main (2009)
  • North sails non-overlapping jib (2009)
  • Harken roller furling
  • Lazy Jacks
  • Single line reefing
  • All lines lead aft to cockpit
  • Harken mainsheet traveler system
  • Adjustable backstay

Galley

SS Deep Sink w/Fresh Water Pump

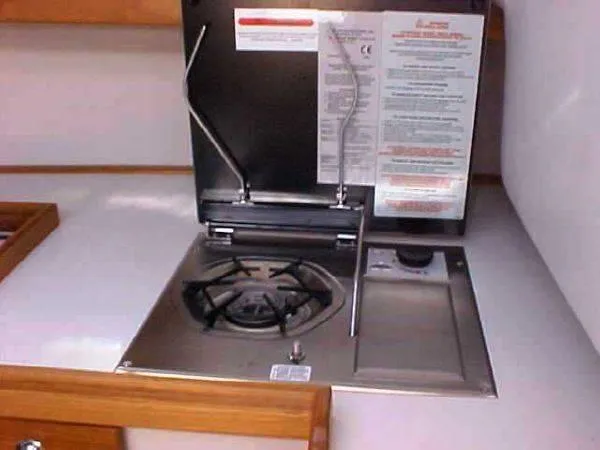

Kenyon Single Burner PP Stove

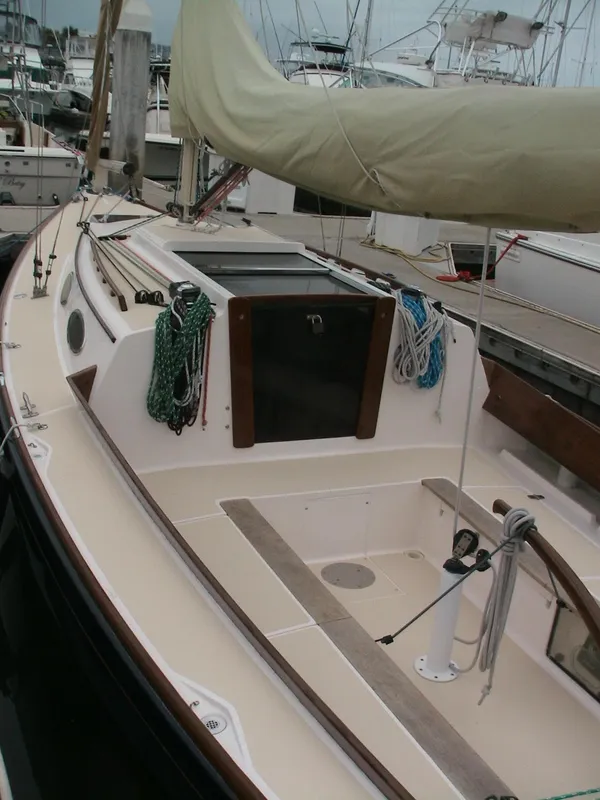

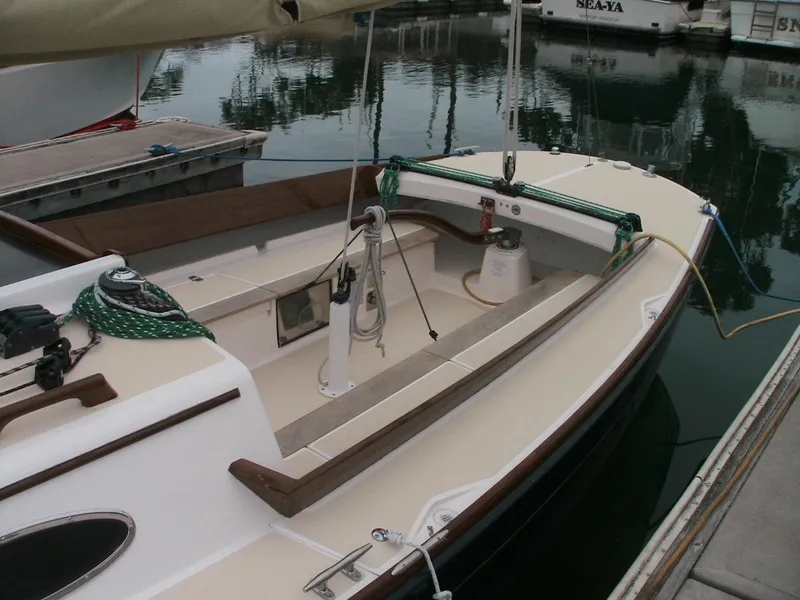

Deck

All Topside Teak Re-varnished October 2014

Cockpit Cover

Custom Cockpit SS Engine Access Plate

14lb Danforth Anchor w/25' Chain and 180' Rode

SS Boarding Ladder w/deck mount hardware

Cockpit Cushions

Black Contest Compass

Life Ring with attached MOB line bag

Complete Re-Varish and Buff and Wax in 2014


Electronics

Standard Horizon CPV350 Chartplotter/VHF/Depth/Speed/Multiscreen


Electrical
  • 12 volt electrical built to A.B.Y.C code
  • 8 Breaker 12vdc and 110v AC panels
  • (2) group 27 batteries w/Selector Switch
  • Xantrex 10amp automatic battery charger
  • 110 volt shore power
  • Galvanic Isolator

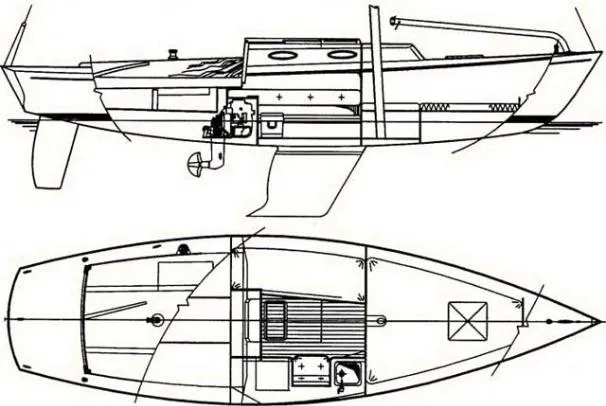

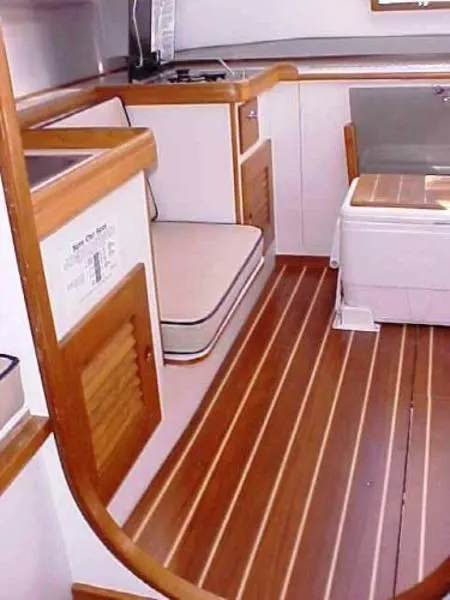

Accommodations

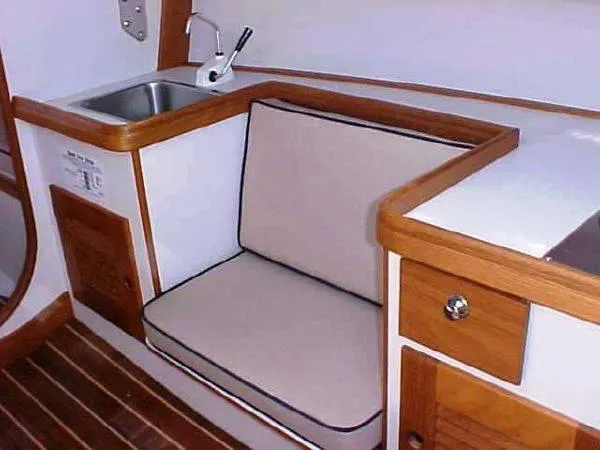

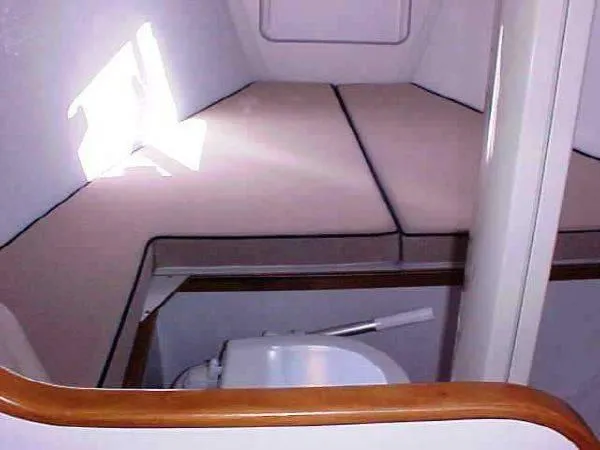

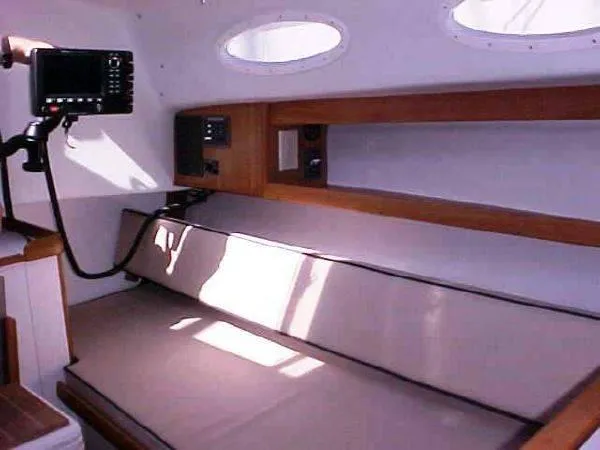

Forward V-berth double with separate infill. Forepeak storage locker, outboard shelving, separation curtain, under berth Raritan sea toilet. Comfortable saloon, stbrdside galley with s.s. sink, freshwater hand pump, worktop, Origo Stove, galley seat, underunit storage. Portside single berth with outboard bookshelf storage, removable backrest for extra width, underberth storage. Coolbox under companionway step, and engine access & washboard storage area. 12v lighting throughout. Interior finished in white laminate headlinings, teak & holly cabin sole, Beige cushions with piping, Teak hand
rails, cappings and fittings. Acrylic sliding companionway & washboards. Teak companionway entrance and cockpit backrests.
• Fwd opening hatch

Mechanical

• 14 HP Yanmar Sail Drive Diesel Engine (complete service 7-10-15)

• Sail Drive Serviced in 2014

Factory Specifications

Deck & Hull

  • Hull and deck molded with latest vacuum assisted SCRIMP resin infusion technology. B~ltek epoxy coated end grained balsa laminate construction with uni-directional and bi-axial E glass and vinyl ester resins.
  • Ten year warranty against hull blistering
  • White hull with 1/4" gold colored recessed cove stripe.
  • Deck with contrasting gray non-skid. Boot top in choice of color
  • Hull to deck joint bonded with plexus glue.
  • Solid G.R.P. transverse support floors over keel.

Steering
  • Tiller is laminated teak with extension.
  • Rudder stock is a high strength stainless steel shaft with two low maintenance Rulon bearings.
  • Balanced spade rudder with elliptical profile, low drag section

Electrical
  • 12VDC to A.B.Y.C. standards.
  • 12 Volt Starting Battery.
  • Bass electrical panel with 8 circuit breakers
  • Guest battery switch.
  • Interior light fixtures - 2 swivel, 1 dome in V berth.
  • Navigation lights.
  • Mast and chainplates grounded to keel for lightning protection to meet A.B.Y.C. standards.
  • Electric Bilge Pump

Interior
  • Bulkheads are marine grade plywood with white, low maintenance laminate
  • Cushions, 3" urethane foam. Owner's choice of fabric.
  • Marine head w/holding tank.
  • 38 qt. icebox cooler doubles as a companionway step with teak and holly lid.
  • Teak and holly cabin sole.

Deck Hardware
  • Two Lewmar #7A winches.
  • Roller furling for 100% self tacking jib with portside sheeting.
  • Mainsheet ( 4: 1) led to Harken traveler system mounted on aft deck with a Barney post mounted Harken cam base and block.
  • Two 10" aluminum winch handles
  • Custom curved Harken track for self-tacking jib system with 2 end stops.
  • Adjustable (8: 1) backstay below deck with lead to cockpit.

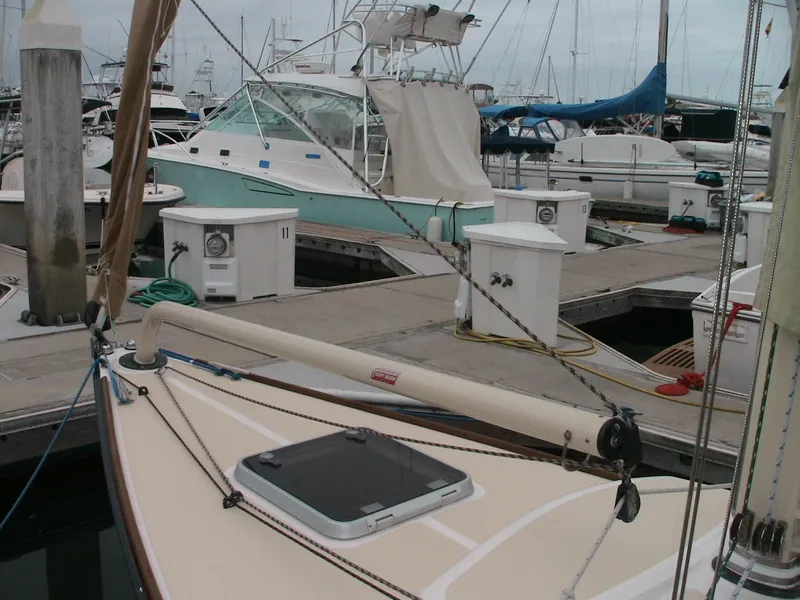

  • Lewmar deck hatch 19"x 19" with smoke tint.
  • 4 Fixed elliptical Bomar ports on cabin house.
  • 6-8" mooring cleats, 2 forward, 2 aft, 2 midship (chocks with forward and midship cleats)
  • Companionway hatch slider, fiberglass, with lexan drop-in washboard and inside/outside opening, lockable stainless hasp.
  • Halyards led aft thru deck mounted Harken fairleads to triple Imtra clutch stoppers' port and starboard.
  • Custom stainless stemhead with welded jib tack and fair lead ring.
  • Teak handrails on cabin house.
  • Teak toe rail.
  • Self draining cockpit.
  • Flag, pole and socket.

Standing Rigging
  • Standing rigging--stainless wire 1 x 19 with open barrel turnbuckles, continuous rigged system for easy rig tuning
  • Custom port and starboard chainplates bedded thru deck with 3M silicone to prevent leaks.
  • Running rigging includes internal main and jib halyards
  • Lazy-jacks and single line reefing for mainsail.
  • Hall Quick Vang system.


disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Engines

Yanmar
14 HPdiesel
