2009 Alerion-Express
Newport Beach, CASail33'
Share
Specifications
MakeAlerion-Express
Length33'
Draft5'
Year2009
TypeSail
HullFiberglass
Fueldiesel
Fuel Capacity18 gal
Water Capacity11 gal
Description

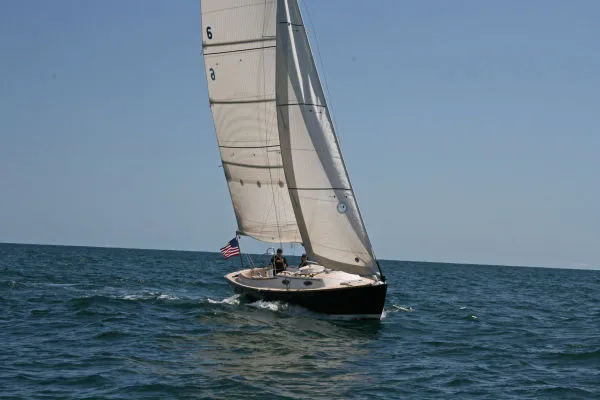

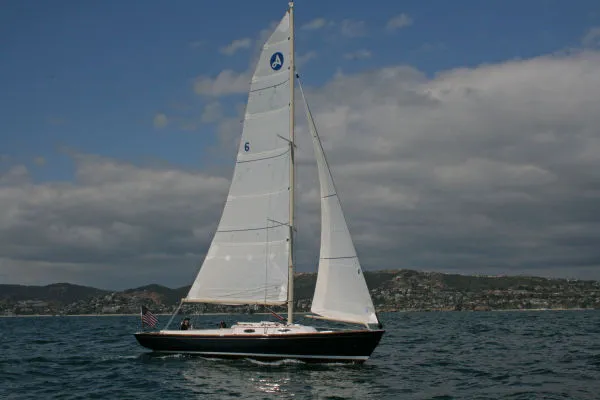

This swift, elegant yacht, built to the highest standards, defines a new sailing style. Modern underwater lines and a new deck, cockpit, cabin and topside by the Pearson Design Group has produced a yacht that lives up to the Herreshoff legacy of classic beauty. The essence of the Alerion is the thrill of a fast, responsive yacht that looks terrific and handles like a dream. Designed for ease of single-handed sailing it does not require a large or experienced crew.

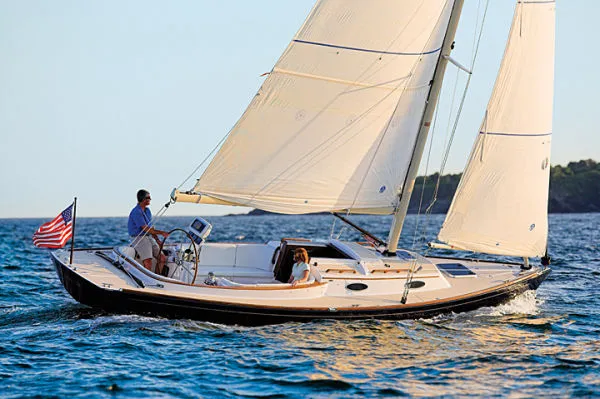

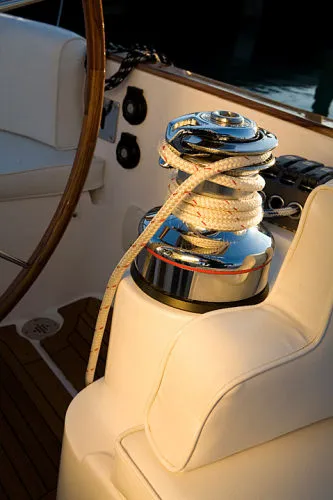

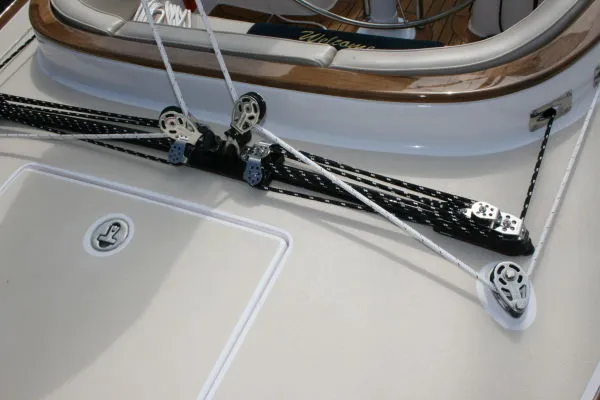

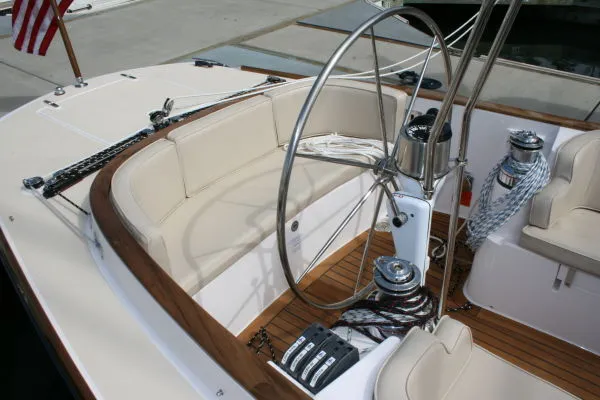

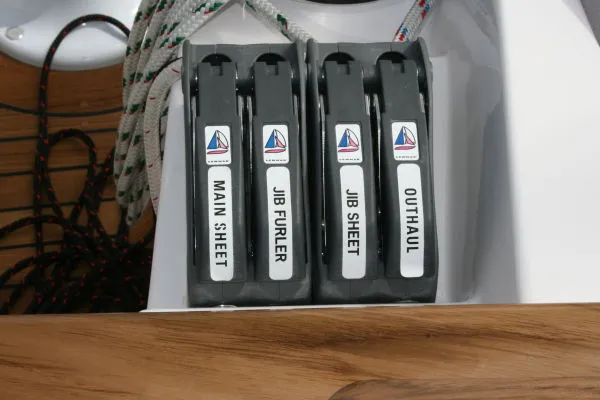

Most of your time will be spent in the exceptionally large and comfortable cockpit. To assure single handed capability, all sail control lines are led to the skipper at the wheel, so he or she can hoist, reef, trim and lower the sails via electric winches that are right at hand. This allows inviting guests aboard that you like, rather than crew you need.

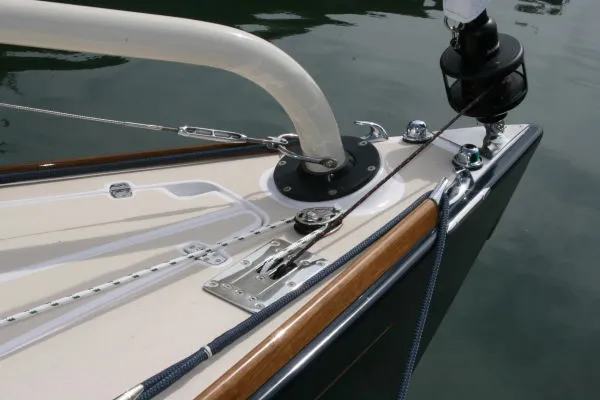

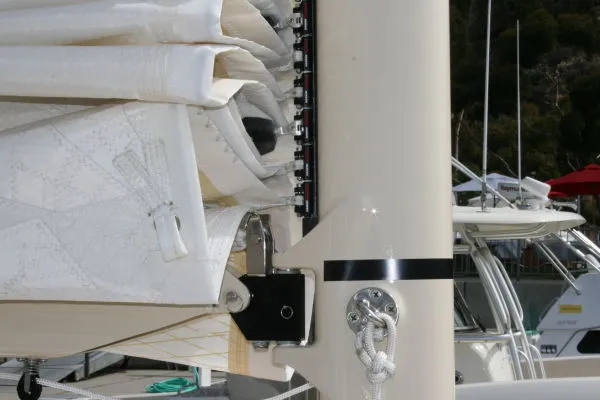

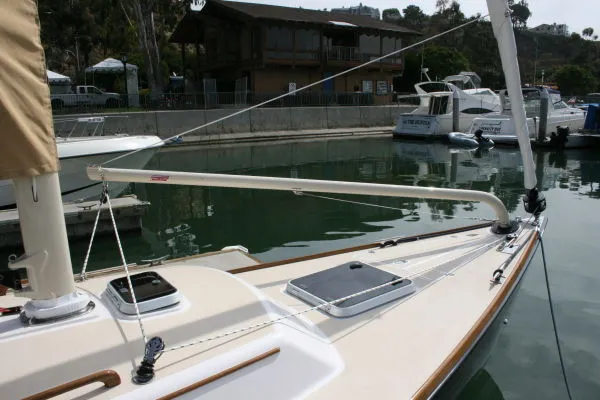

The high strength carbon fiber mast by Hall Spars safely allows the elimination of the backstay, which allows a larger mainsail and better aerodynamic shape. With the patented Hoyt Jib Boom adding offwind power, this is a 2 sail, self tacking rig that projects more sail area. The payoff is excellent light wind and offwind speed-all easily single-handed.
The interior is a traditional design with quality materials; stylish and fully functional. We've ordered this boat with the deluxe teak interior with a rich no-grain varnished finish.
Most of your time will be spent in the exceptionally large and comfortable cockpit. To assure single handed capability, all sail control lines are led to the skipper at the wheel, so he or she can hoist, reef, trim and lower the sails via electric winches that are right at hand. This allows inviting guests aboard that you like, rather than crew you need.
The high strength carbon fiber mast by Hall Spars safely allows the elimination of the backstay, which allows a larger mainsail and better aerodynamic shape. With the patented Hoyt Jib Boom adding offwind power, this is a 2 sail, self tacking rig that projects more sail area. The payoff is excellent light wind and offwind speed-all easily single-handed.
The interior is a traditional design with quality materials; stylish and fully functional. We've ordered this boat with the deluxe teak interior with a rich no-grain varnished finish.
Engines
Total Power: 20
Accommodations and Layout

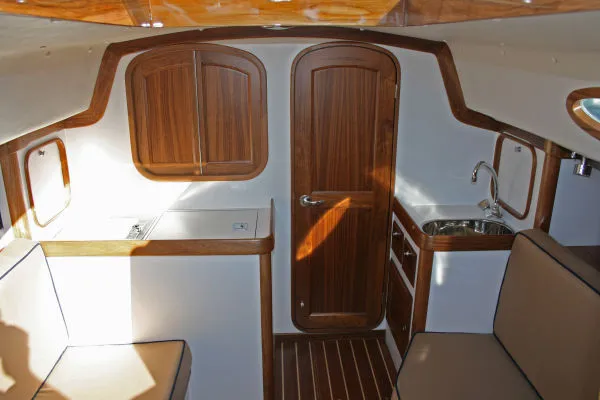

V-Berth forward with vinyl headliner. The main cabin has port and starboard settees,and teak shelving. The galley has a 12V top-loader refrigerator and Kenyon stove. The head has a fresh-water marine toilet and solid teak vanity. Interior doors are solid teak, the sole is teak & holly thruout and the hull has a teak ceiling.
Forward Cabin
- V berth with storage underneath
- Teak and holly sole
- Vinyl Hull Liner
- Deck Hatch
- Cushions are 4" laminated foam
- (1) Overhead light, Vinyl head liner
Main Cabin
- Settees port and starboard
- Shelves outboard of settees
- Teak and holly cabin sole with access to bilge
- Teak ceiling
- Electrical panel on port side settee
Galley
- Storage cabinets
- Kenyon KISS Stove (Butane, single burner)
- Isotherm DI 40 DC refrigerator (top loaded)
- Formica counter tops
- Stainless steel sink
- Manual pump for cold water
Head Compartment
- Molded GRP pan
- Color is white gelcoat
- Molded non-skid sole
- Manual Raritan PHII marine toilet
- Manual Fresh Water pump
- Stainless steel sink with seacock
- Storage bin aft
- Locker under vanity
- Mirror
- Deck hatch
- Paneled access door to main cabin
- Manual Raritan PH-2 with "Y" valve
- Holding tank (16 U.S. gal.) with deck pump out
- Solid teak vanity
- Teak portlight
- Teak seat
Interior Decor
- Main Headliners: Plywood/vinyl panels allow ready access to deck hardware
- Side deck headliners: Vinyl glued to underside of deck
- Hull ceilings are teak in main cabin
- Joiner bulkheads are Formica plywood
- Locker interiors/Bunk tops/Shelves are luan plywood
- Head Door is solid teak with plywood panels
- Solid Teak companionway trim
- Cabin sole is Teak and Holly plywood
- Settees, Back rests and Mattresses are upholstered with owner's choice of fabrics from standard fabric chart
Electrical System
- System designed to ABYC E8 guidelines
- All wiring is tin-plated to inhibit corrosion
- All wiring is coded for ease of identification
- Bonding system
- 12-volt DC negative ground system, DC master panel with analog meter and magnetic circuit breakers
- Battery switch
- (1)Gel cell house and (1) engine starter battery
- Halogen reading lights
- Overhead lighting in galley and head
- Port and Starboard lights mounted at stemhead
- Stern Light mounted on aft deck
- Anchor light
Mechanical
- Engine Yanmar 3YM20C with sail drive
- 20 HP @3600 RPM Naturally aspirated
- 2 blade folding propeller
- GRP engine bed/oil pan
- Through transom wet exhaust
- Waterlock muffler
- Single lever engine control
- Neutral safety switch
- Manual bilge pump
- Electrical bilge pump with float switch and manual override
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Engines
Yanmar 3YM20C
