“Montage”
2014 Beneteau Oceanis
Oxnard, CASail55'
Share
Specifications
MakeBeneteau
ModelOceanis
Length55'
Beam16.25'
Draft7.25'
Year2014
TypeSail
HullComposite
Fueldiesel
Cabins3
Heads2
Cruise8.5 kts
Max Speed9.5 kts
Fuel Capacity160 gal
Water Capacity183 gal
Description

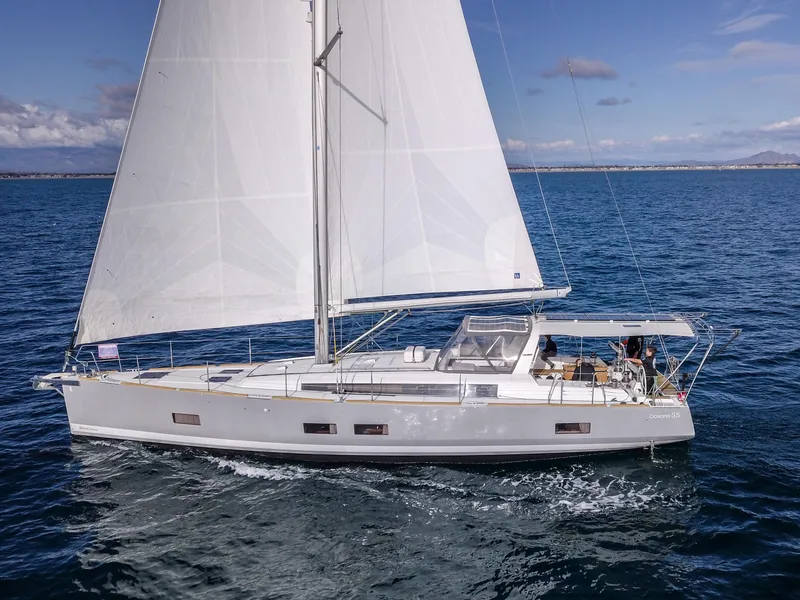

The Oceanis 55.1 is a performance cruiser that is as appealing to the eye as she is easy to maneuver.
The owner of the Oceanis 55.1 will enjoy safe sailing on this balanced hull with a comfortable deck plan and a high standard of finish. She includes important innovations, such as the mainsail arch, mast position, balanced sail plan, 45° companionway, and electric swim platform, which all go to make this cruiser easy to handle.
Set up for offshore cruising with custom targa (dinghy davits and arch), cockpit shade cover with solar panels, generator, water maker, high output alternators, and large battery bank.
The Oceanis 55.1 has opted for an outstanding level of interior comfort. Her interior design has a wonderfully serene atmosphere. Her galley is very well equipped and spacious.
With her new sails and many cruising modifications, Montage is ready to take you to the ports and coves that many will only dream about.
Dimensions
LOA: 55 ft 1 in
Beam: 16 ft 3 in
LWL: 49 ft 9 in
Minimum Draft: 6 ft 3 in
Maximum Draft: 7 ft 7 in
Dry Weight: 37258 lbs
Beam: 16 ft 3 in
LWL: 49 ft 9 in
Minimum Draft: 6 ft 3 in
Maximum Draft: 7 ft 7 in
Dry Weight: 37258 lbs

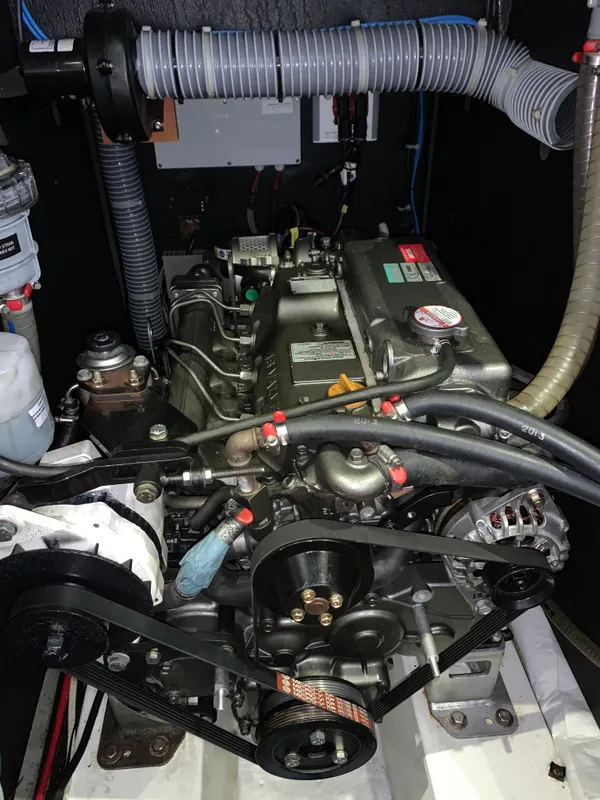

Engine
Engine Yanmar Diesel:
80 HP/80 HP, Sail Drive, Common Rail
Engine control - Control panel in cockpit starboard
Engine compartment: Soundproofing foam - Ventilation: 2 air intakes and 1 pressured air outlets
1 Alternator 12 V / 125 Ah
2 Rotation moulded diesel tank 200 L / 53 US Gal (under port aft berth and Starboard) - Electronic gauge - Low level alarm - 2 Deck fillers
Filters: Sea water - Diesel - Water separator
Feathering three blades propeller
Engine access through companionway (opening with 2 gas struts) - 2 Engine access through aft cabins
80 HP/80 HP, Sail Drive, Common Rail
Engine control - Control panel in cockpit starboard
Engine compartment: Soundproofing foam - Ventilation: 2 air intakes and 1 pressured air outlets
1 Alternator 12 V / 125 Ah
2 Rotation moulded diesel tank 200 L / 53 US Gal (under port aft berth and Starboard) - Electronic gauge - Low level alarm - 2 Deck fillers
Filters: Sea water - Diesel - Water separator
Feathering three blades propeller
Engine access through companionway (opening with 2 gas struts) - 2 Engine access through aft cabins
Tanks
Fresh Water Tanks: (183 Gallons)
Fuel Tanks: (106 Gallons)
Fuel Tanks: (106 Gallons)
Additional Units Included
- 2014 AB Rib
Construction
Design in accordance with European Directive requirements and according to CE certification
Infusion hull (Polyester / Sandwich balsa wood)
Structural single skin infusion inner moulding (Fabrics - resin) bonded to the hull
Injection moulded deck in glass fibre/balsa sandwich, covered with "diamond-point" non-slip coating
Infusion single-skin GRP injection inner deck moulding
Deck hull joint screwed, bonded and banded with 1 solid wood bulwark
Cast iron keel fixed with bolts and stainless steel backing plates
Hung rudder with stainless steel stock
White colored hull - Grey metal hull graphics
8 large hull ports
Infusion hull (Polyester / Sandwich balsa wood)
Structural single skin infusion inner moulding (Fabrics - resin) bonded to the hull
Injection moulded deck in glass fibre/balsa sandwich, covered with "diamond-point" non-slip coating
Infusion single-skin GRP injection inner deck moulding
Deck hull joint screwed, bonded and banded with 1 solid wood bulwark
Cast iron keel fixed with bolts and stainless steel backing plates
Hung rudder with stainless steel stock
White colored hull - Grey metal hull graphics
8 large hull ports

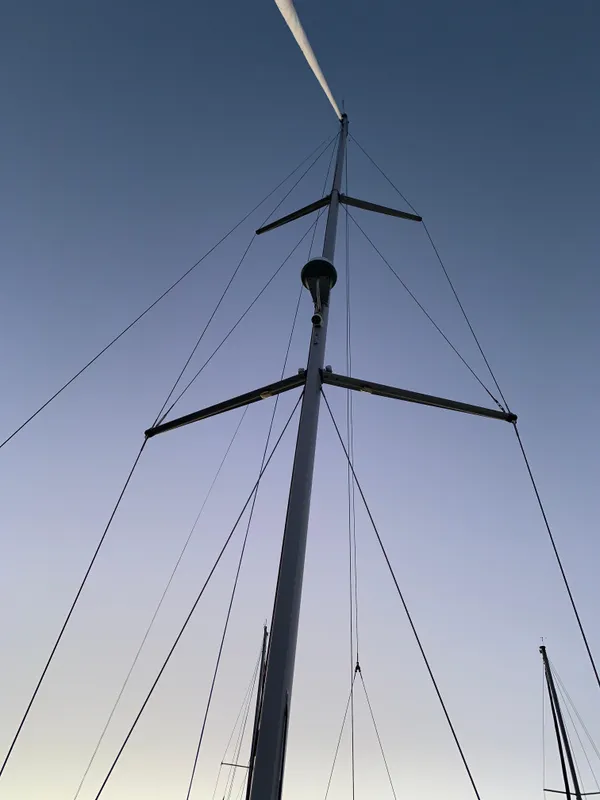

Rigging
Standard mast 9/10 anodized aluminum installed on the deck, 2 aft-swept spreaders
Anodized aluminium boom
Discontinuous stainless steel standing rigging
2 Backstays with bottlescrews
Rigid boom vang with tackle
Genoa furling system with drum on the deck
2 Stand Up blocks for mainsail on fixed composite arch
2 Genoa tracks with piston adjusted traveller cars
2 Genoa sheet turning blocks
Rigging run back to cockpit (except boom topping lift)
Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets 2 rapid reefing lines, 1 manual reef

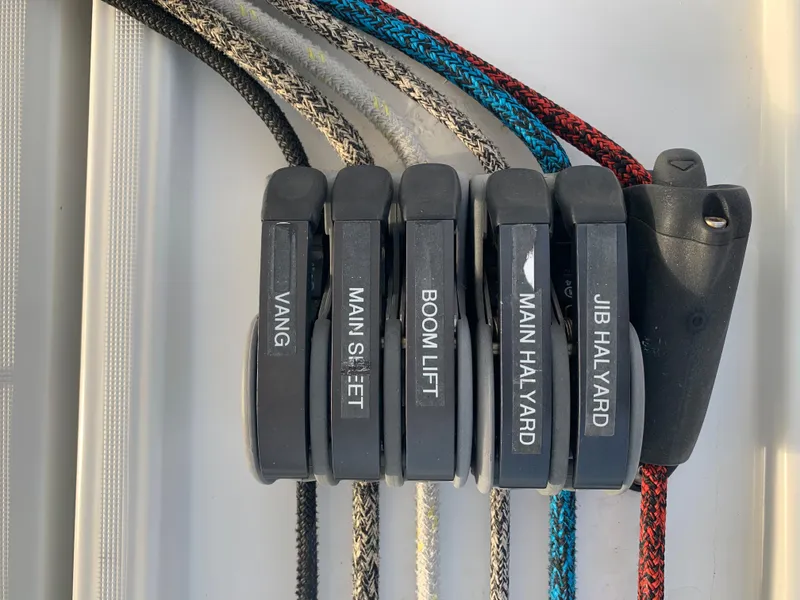

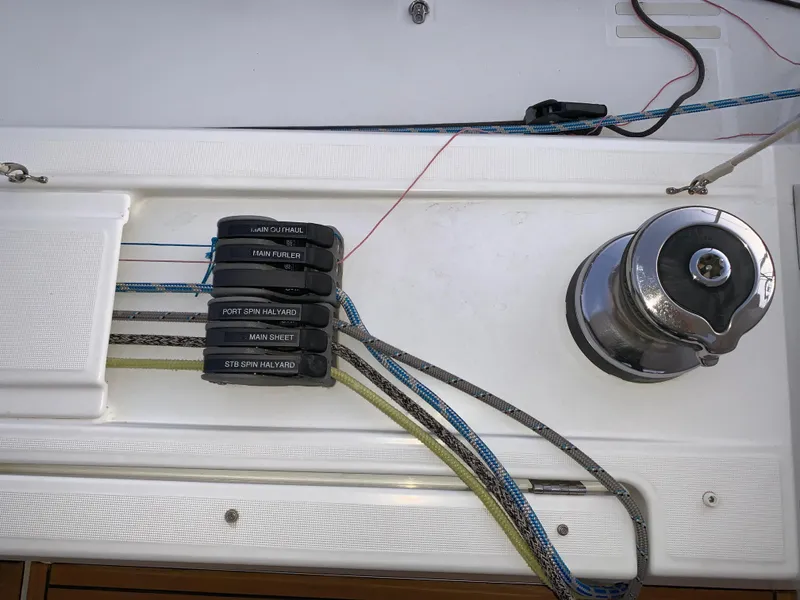

11 Jammers
2 lockers for rope tails near helm stations
Anodized aluminium boom
Discontinuous stainless steel standing rigging
2 Backstays with bottlescrews
Rigid boom vang with tackle
Genoa furling system with drum on the deck
2 Stand Up blocks for mainsail on fixed composite arch
2 Genoa tracks with piston adjusted traveller cars
2 Genoa sheet turning blocks
Rigging run back to cockpit (except boom topping lift)
Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Genoa sheets 2 rapid reefing lines, 1 manual reef
11 Jammers
2 lockers for rope tails near helm stations
Winches
2 Self-tailing genoa sheet winches (H60.2 STC)
2 Self tailing coachroof winches (H46.2 STC)
2 Aluminum winch handles Speed Grip
2 Winch handle boxes
2 Self tailing coachroof winches (H46.2 STC)
2 Aluminum winch handles Speed Grip
2 Winch handle boxes
Halyards
Completely hidden
GRP halyard cover from mast foot to the back of the cockpit
GRP halyard cover from mast foot to the back of the cockpit
Sails
New stock furling genoa with UV protective strip
New furling mainsail with cover
2 Spinnakers Storm sail Code Zero
New furling mainsail with cover
2 Spinnakers Storm sail Code Zero
Mooring - Mooring Lines
Self-draining chain locker with eye bolt for bitter end
12 V - 1500 W vertical electrical windlass - Remote control
8 Aluminum mooring cleats, Length: 400mm / 1’4’’ - Stainless steel deckline protection
12 V - 1500 W vertical electrical windlass - Remote control
8 Aluminum mooring cleats, Length: 400mm / 1’4’’ - Stainless steel deckline protection

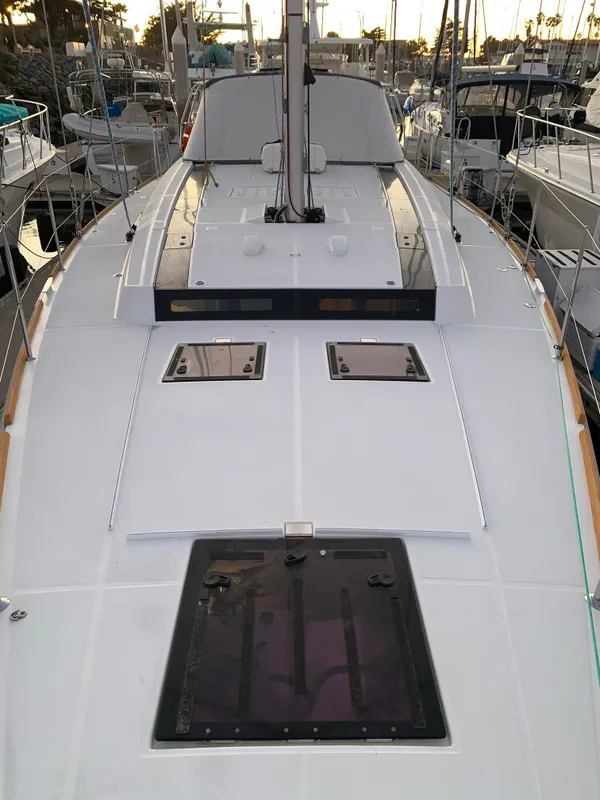

Sail Locker
Access through deck hatch T70, Passage width: 62 cm / 2’
Stainless steel ladder
Shelving
Direct access to the anchor well, Panel: T44
Stainless steel ladder
Shelving
Direct access to the anchor well, Panel: T44
Safety on Deck
1 Open stainless steel forward pulpit
2 Stainless steel pushpits
1 Lifebuoys support bracket
1 Outboard engine bracket
Ring for flag welded on pushpit
Double guardrail and stainless steel stanchions, 750mm / 2’6’’ - Openings in guardrail to port and starboard
2 Stainless steel pushpits
1 Lifebuoys support bracket
1 Outboard engine bracket
Ring for flag welded on pushpit
Double guardrail and stainless steel stanchions, 750mm / 2’6’’ - Openings in guardrail to port and starboard

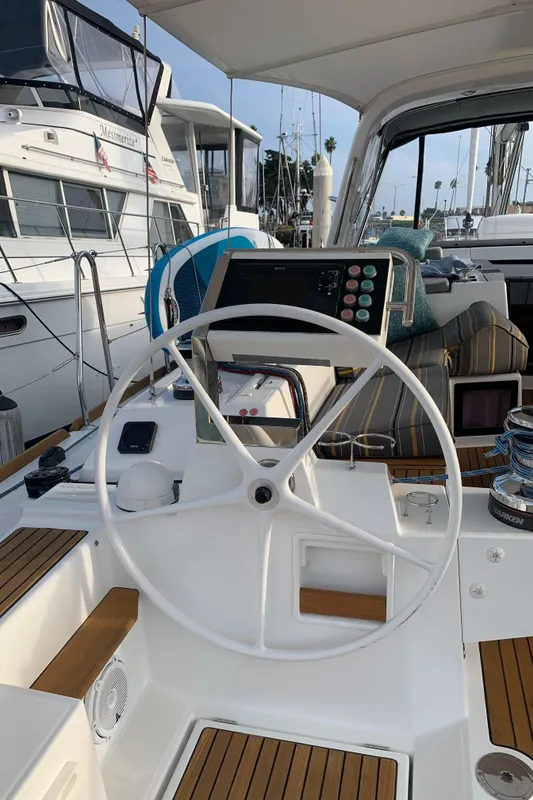

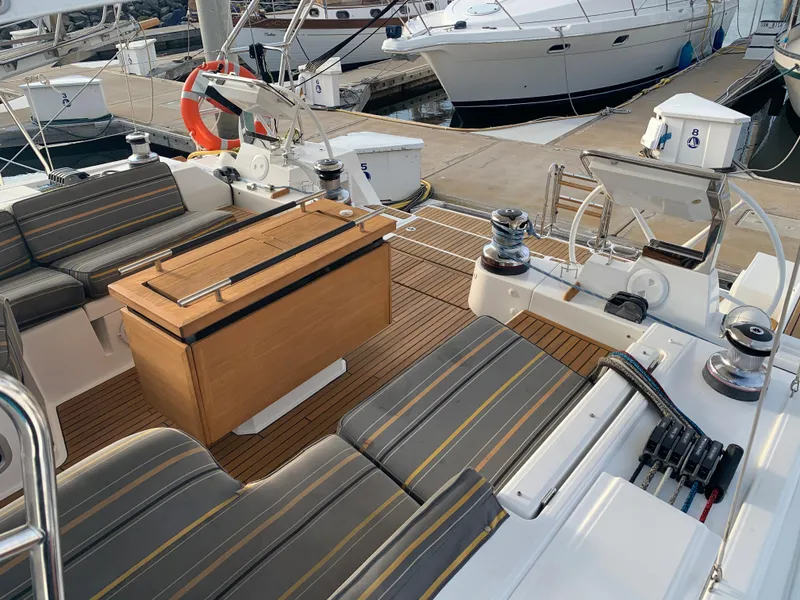

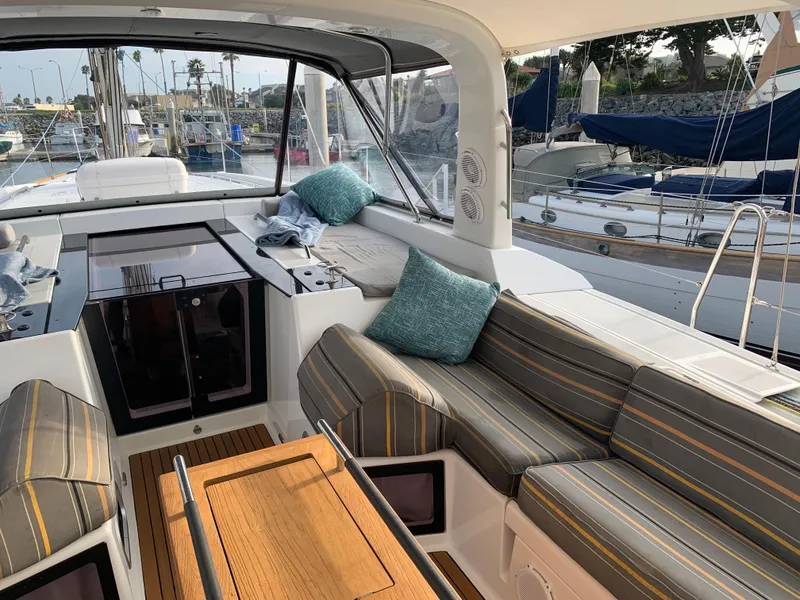

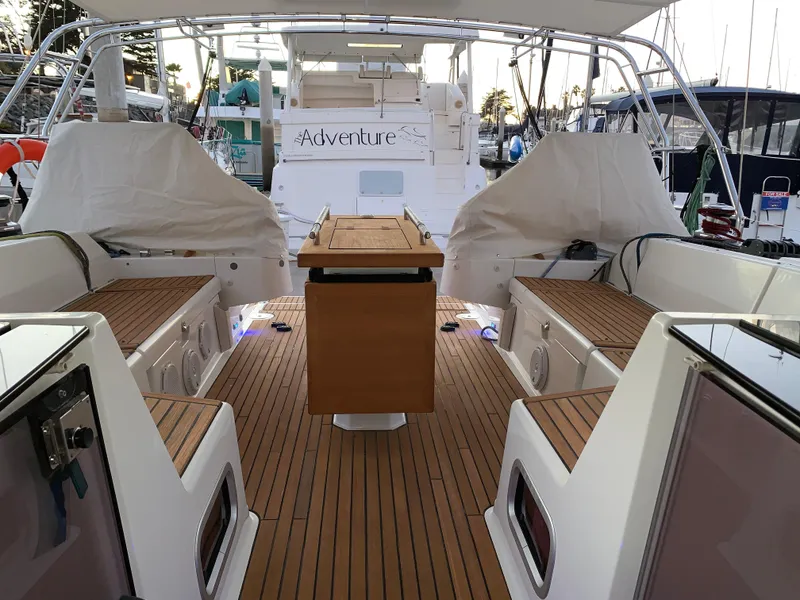

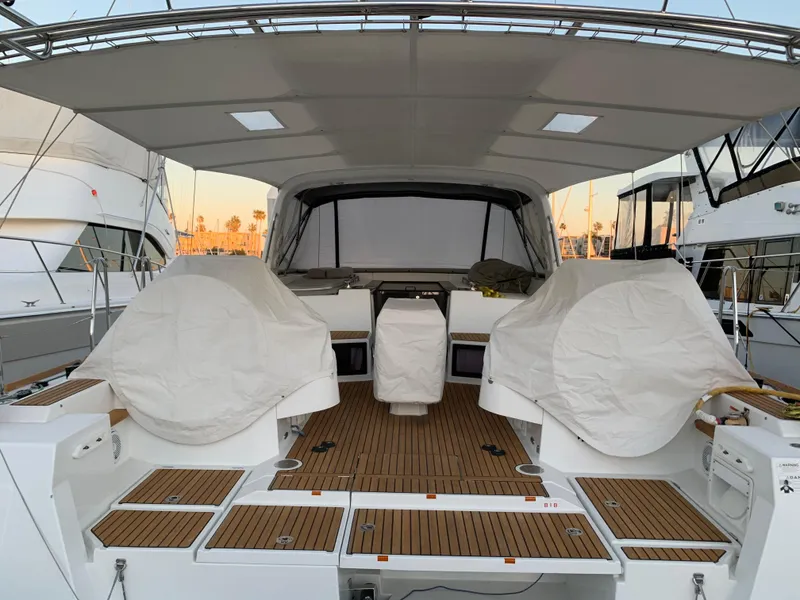

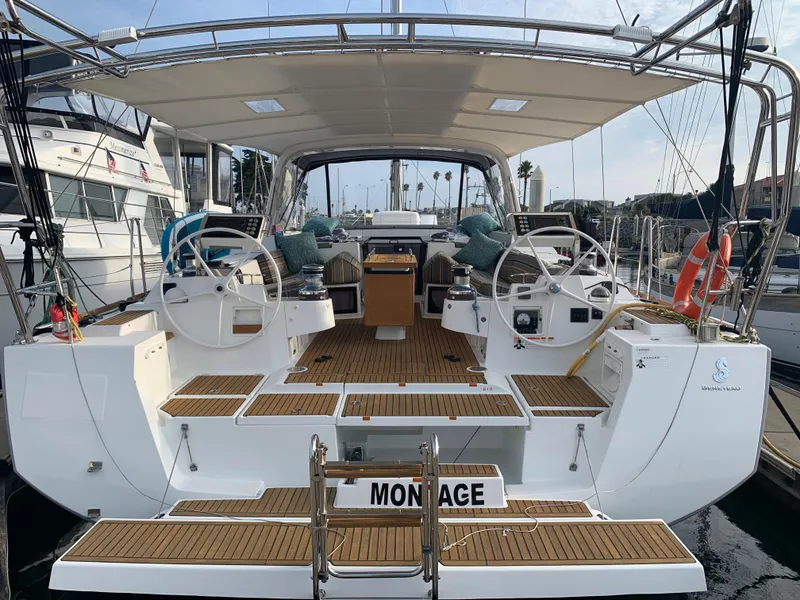

Cockpit
Self-draining cockpit
2 Cockpit locker
2 Lockers in cockpit sole beneath helm's feet 1 Liferaft locker under helm seat (0,95 m x 0,42 m x 0,59 m (Deep) /3’1’’ x 1’5’’ x 1’11’’ (Deep))
1 Gas locker for bottle(s) in cockpit sole

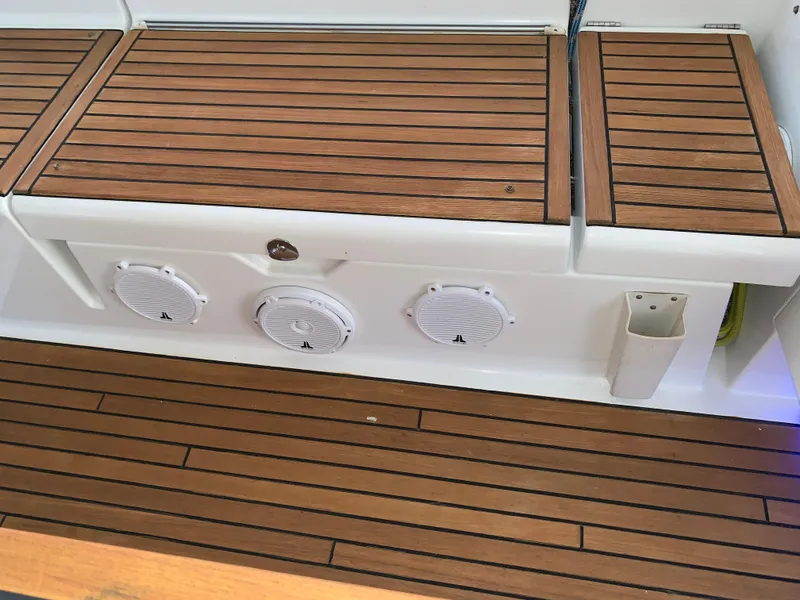

Natural solid wood slatted cockpit benches

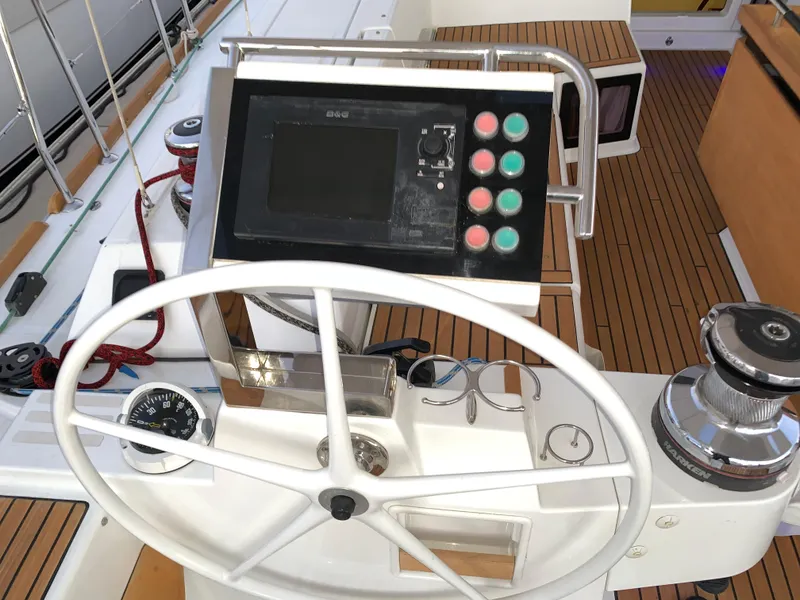

2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - Leather covered - Steering gear at the helm station - metal cable transmission system - Cup holder in stainless steel
2 Deck access points to tiller system + Power supply access hatch
1 Emergency tiller
2 Steering compass
Engine throttle and control panel to starboard
Polyester cockpit table - 2 Leaves - 2 side tables at the end of the table - miscellaneous locker - 1 Cooler - 1 Stowage - 2 large stainless steel handrails - 12 V socket - lamp with shade
Hot/cold water cockpit shower

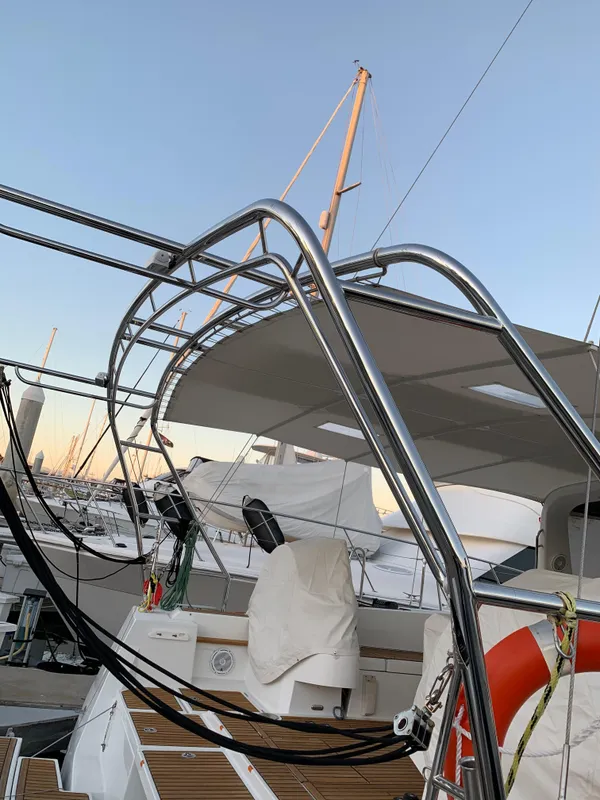

1 Fixed composite arch - Integrated lights LED - 4 Handrails
1 shore supply socket to starboard

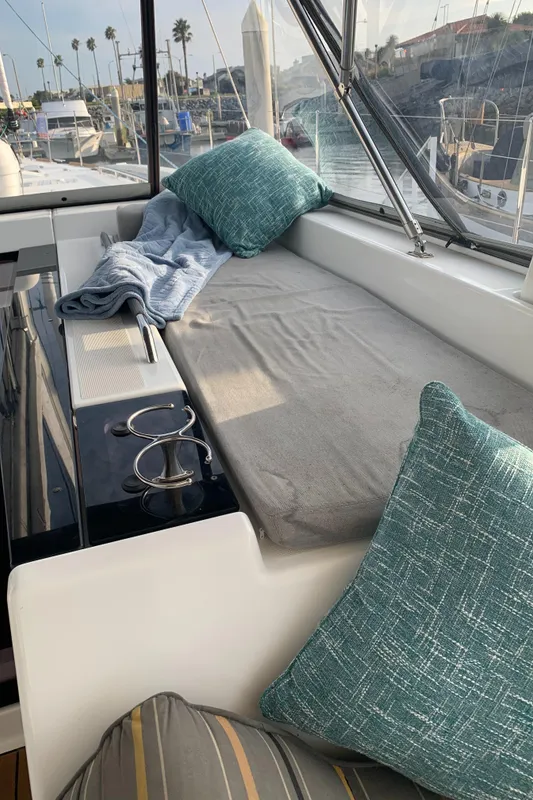

2 sunbathing areas to either side of the companionway
2 Hinged PMMA companionway doors - Sliding hatch made of PMMA
2 Cockpit locker
2 Lockers in cockpit sole beneath helm's feet 1 Liferaft locker under helm seat (0,95 m x 0,42 m x 0,59 m (Deep) /3’1’’ x 1’5’’ x 1’11’’ (Deep))
1 Gas locker for bottle(s) in cockpit sole
Natural solid wood slatted cockpit benches
2 Steering wheel consoles: Stainless steel steering wheels - 900 mm diameter - Leather covered - Steering gear at the helm station - metal cable transmission system - Cup holder in stainless steel
2 Deck access points to tiller system + Power supply access hatch
1 Emergency tiller
2 Steering compass
Engine throttle and control panel to starboard
Polyester cockpit table - 2 Leaves - 2 side tables at the end of the table - miscellaneous locker - 1 Cooler - 1 Stowage - 2 large stainless steel handrails - 12 V socket - lamp with shade
Hot/cold water cockpit shower
1 Fixed composite arch - Integrated lights LED - 4 Handrails
1 shore supply socket to starboard
2 sunbathing areas to either side of the companionway
2 Hinged PMMA companionway doors - Sliding hatch made of PMMA
Swim Deck/Stern Deck
Fully opening transom, convertible to bathing platform (2,85 m x 0,77 m /9’4’’ x 2’6’’)
Electrically controlled opening
Natural solid wood decking on swim platform
1 Stainless steel bathing ladder, folding - solid wood steps
Electrically controlled opening
Natural solid wood decking on swim platform
1 Stainless steel bathing ladder, folding - solid wood steps
Interior
Woodwork Alpi Mahogany
Parquet type laminated floors
Fabric hull linings in saloon and cabins
Interior upholstery, white leather
Marine mattresses in the cabins
Headroom: 1.97 m / 6’6’’
Wooden saloon companionway with moulded wood suspended steps with non-slip surface
2 Leather covered stainless steel handrails
Parquet type laminated floors
Fabric hull linings in saloon and cabins
Interior upholstery, white leather
Marine mattresses in the cabins
Headroom: 1.97 m / 6’6’’
Wooden saloon companionway with moulded wood suspended steps with non-slip surface
2 Leather covered stainless steel handrails

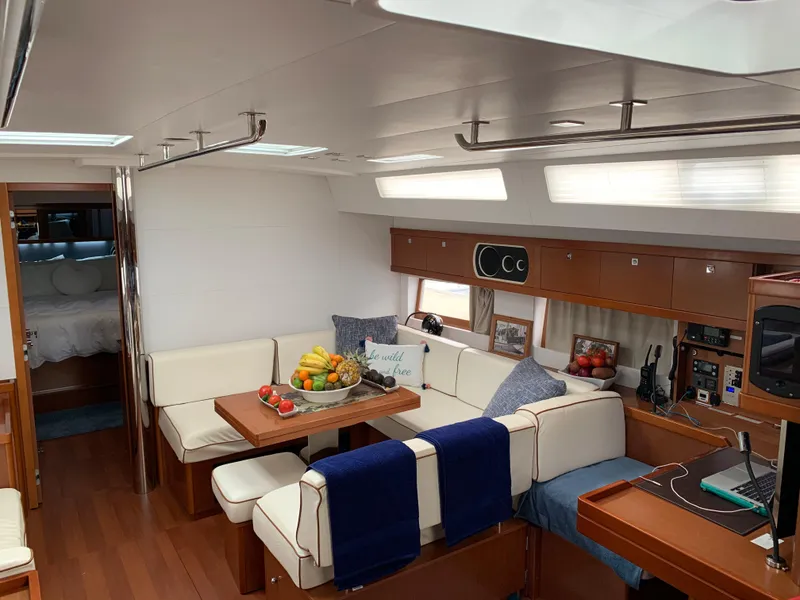

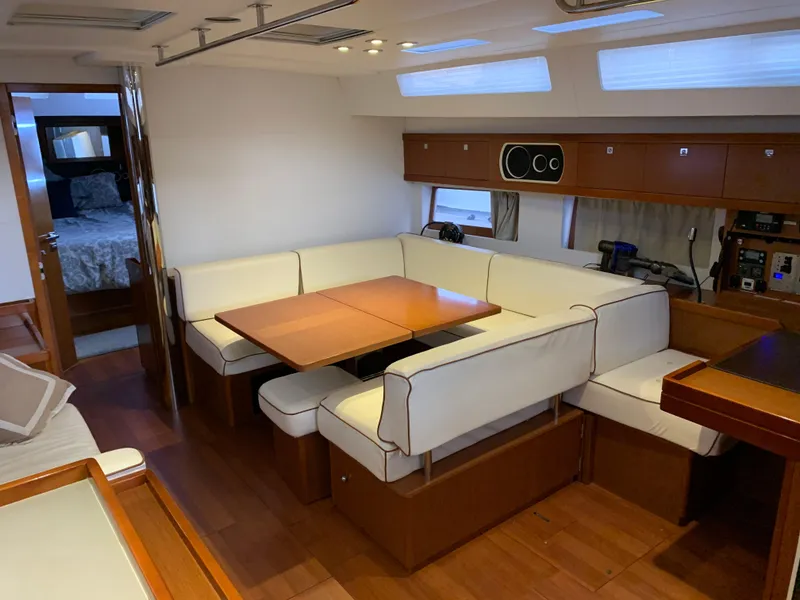

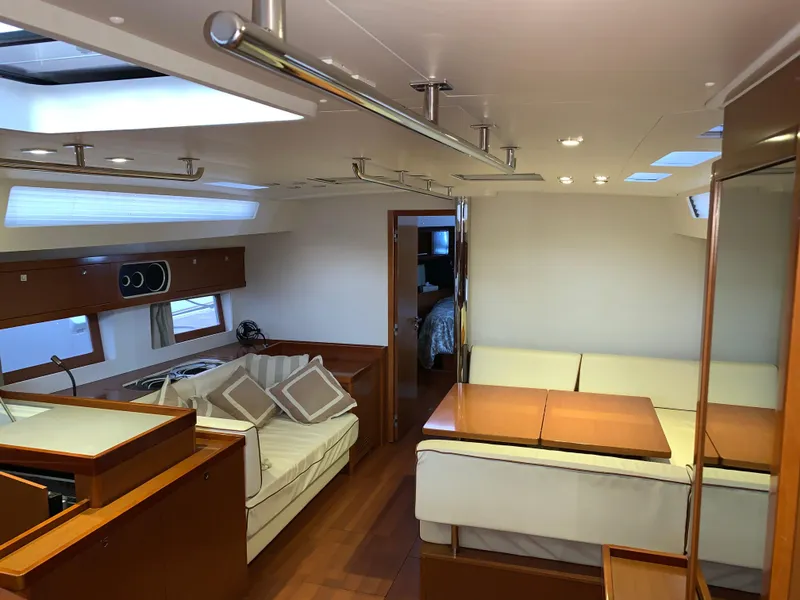

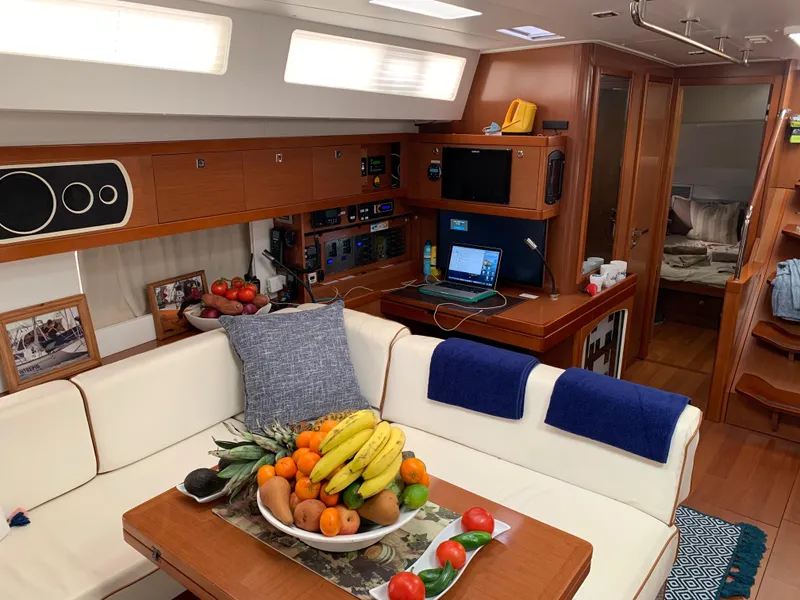

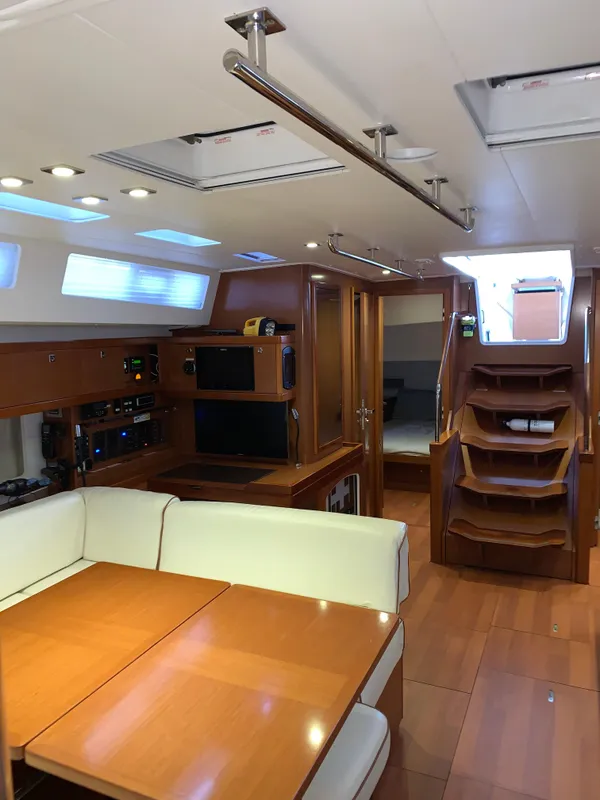

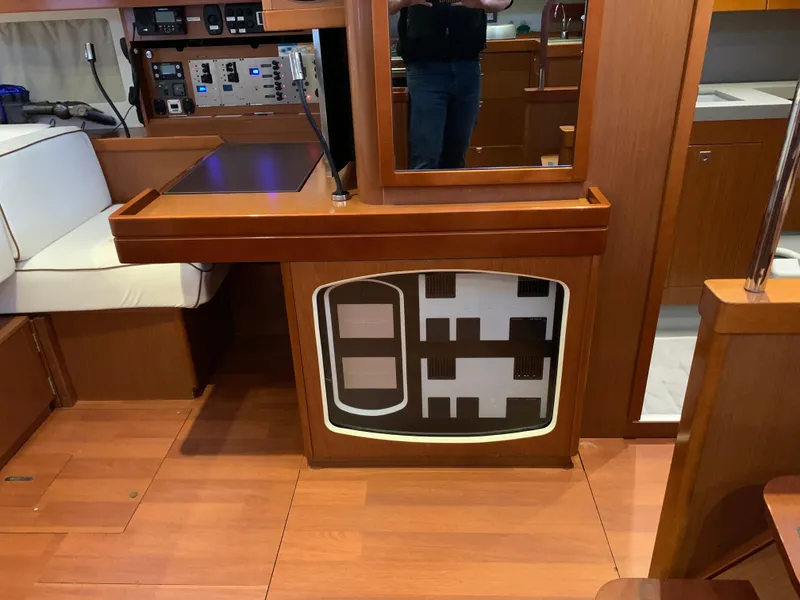

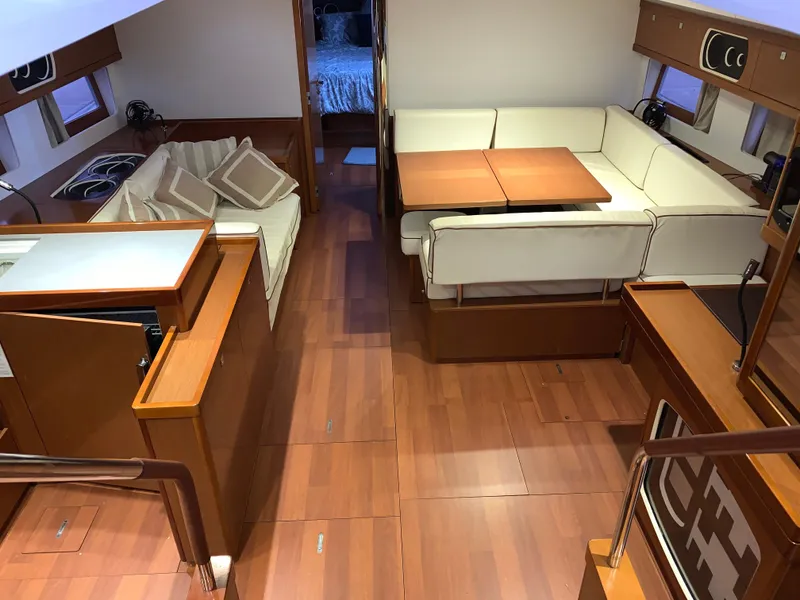

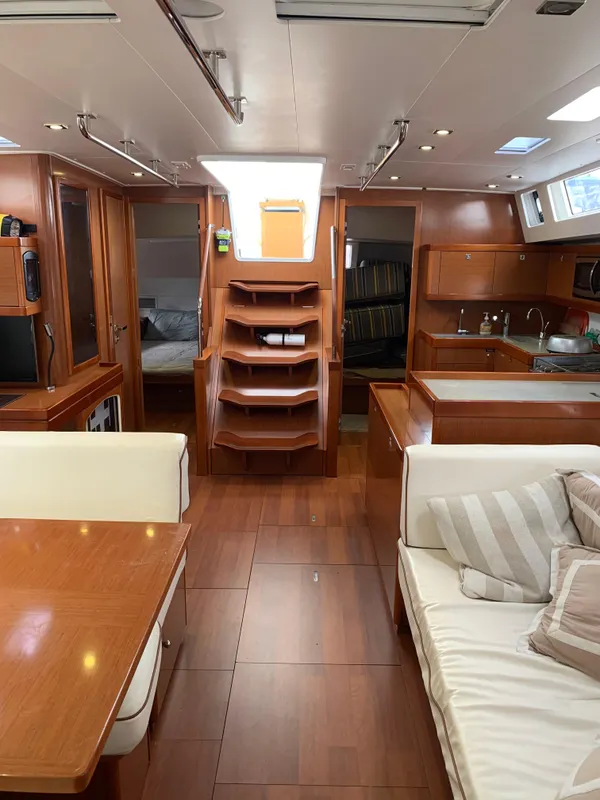

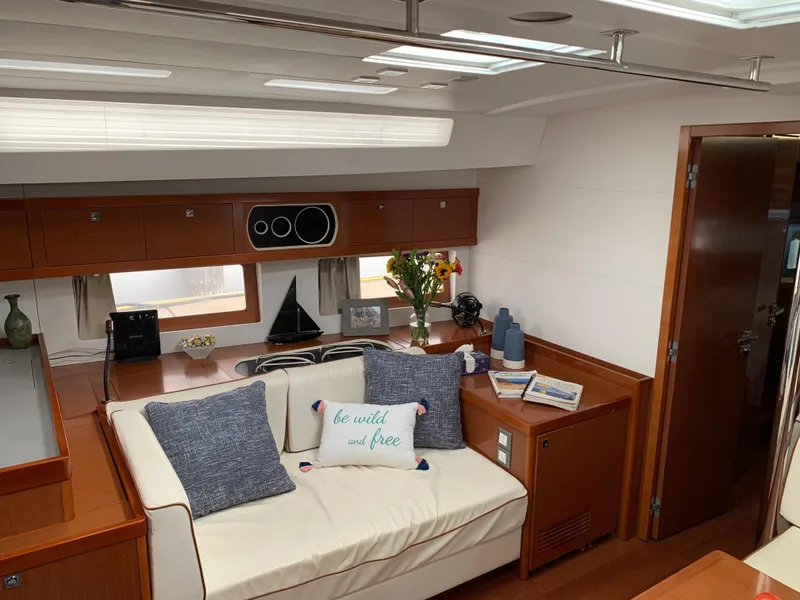

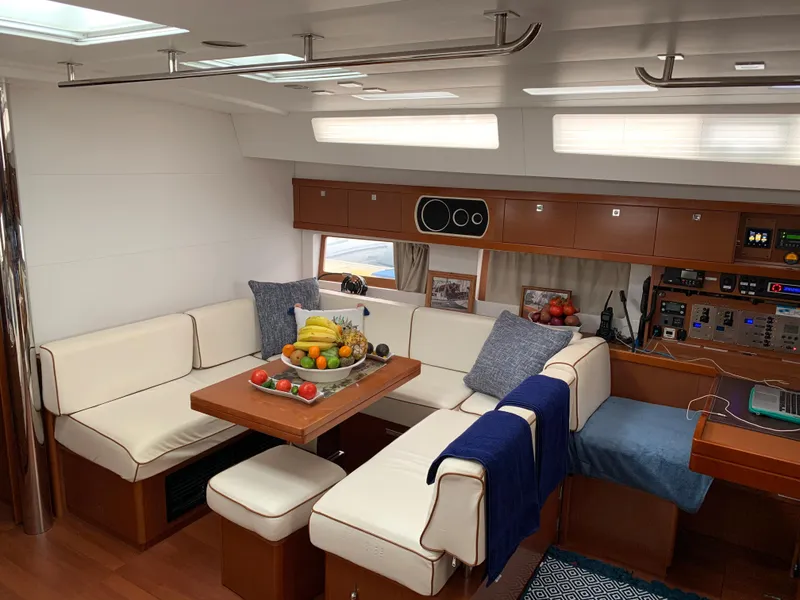

Salon
Headroom: 1,98 m / 6’6’’
To starboard: Saloon bench seats, Removable backrest - double density foam
Salon table in 1 piece - Varnished wood top with inlay - 2 Aluminium legs
To port: Large sofa (2 m / 6’7’’)
Mirror on bulkhead, at base of companionway
Cupboards - Shelves and stowage along the hull - Storage under bench seats
Shelving with chrome fiddles
2 Panoramic deck house windows with concertina blinds
2 Hull portholes with curtain
2 Opening portholes on coaming in side windows
2 Flush deck hatches with mosquito blind
2 Stainless steel handrails, on deckhead
To starboard: Saloon bench seats, Removable backrest - double density foam
Salon table in 1 piece - Varnished wood top with inlay - 2 Aluminium legs
To port: Large sofa (2 m / 6’7’’)
Mirror on bulkhead, at base of companionway
Cupboards - Shelves and stowage along the hull - Storage under bench seats
Shelving with chrome fiddles
2 Panoramic deck house windows with concertina blinds
2 Hull portholes with curtain
2 Opening portholes on coaming in side windows
2 Flush deck hatches with mosquito blind
2 Stainless steel handrails, on deckhead
Galley
Headroom: 1,95 m / 6’5’’
U-shaped galley
Kerrock grey worktop

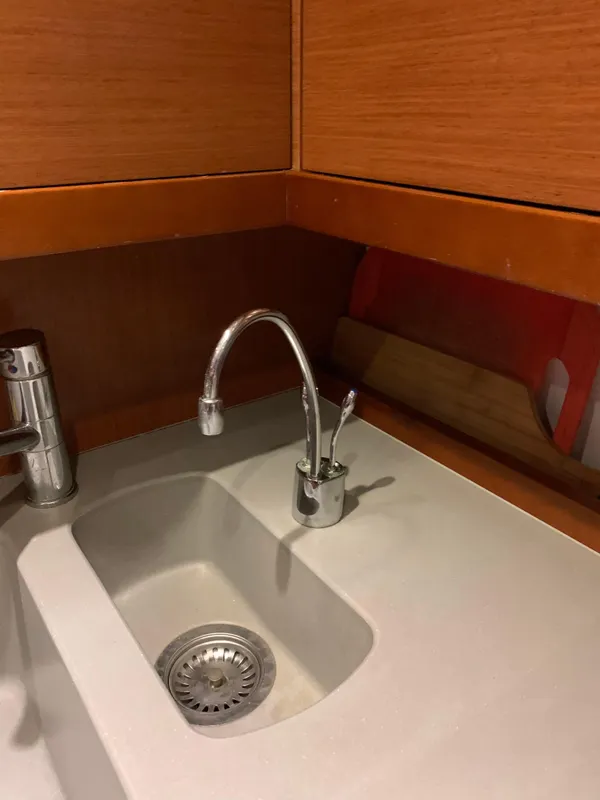

1 Sink in grey Kerrock - moulded into the work surface - 1 Mixer tap with hot/cold water under pressure
1 Gas cooker 2 burners - Stainless steel oven on mountings - 1 Stowage, beneath the oven
1 12 V 100 liter ice box, top opening
1 12 V 130 liter refrigerator, front opening
Fitted lockers and closed shelving (Shelving, Bin)
1 Base cabinet: 3 Drawers - 1 Stowage
Storage space along the hull
2 Opening ports on coaming with curtains on side windows
U-shaped galley
Kerrock grey worktop
1 Sink in grey Kerrock - moulded into the work surface - 1 Mixer tap with hot/cold water under pressure
1 Gas cooker 2 burners - Stainless steel oven on mountings - 1 Stowage, beneath the oven
1 12 V 100 liter ice box, top opening
1 12 V 130 liter refrigerator, front opening
Fitted lockers and closed shelving (Shelving, Bin)
1 Base cabinet: 3 Drawers - 1 Stowage
Storage space along the hull
2 Opening ports on coaming with curtains on side windows

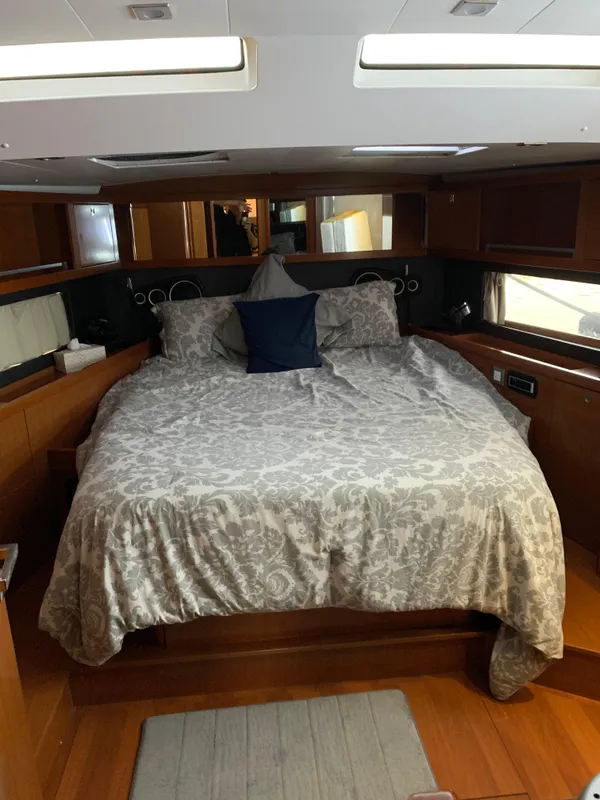

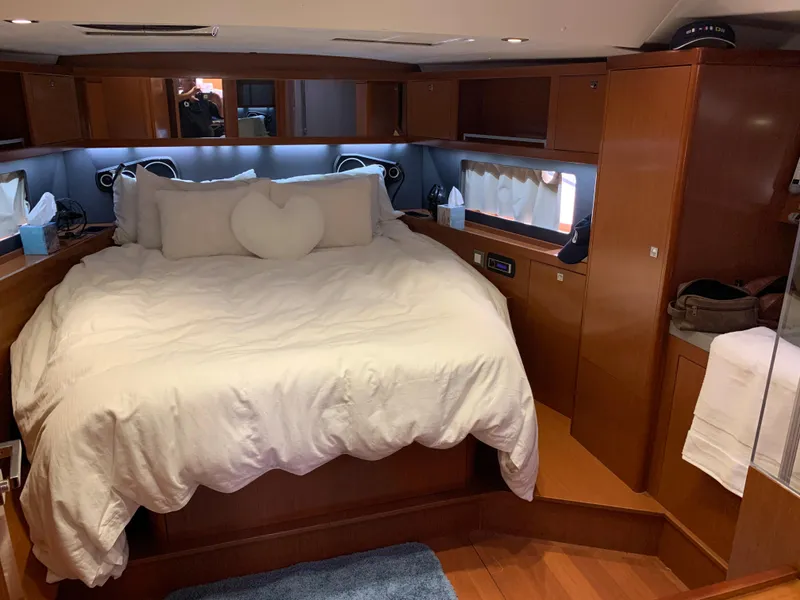

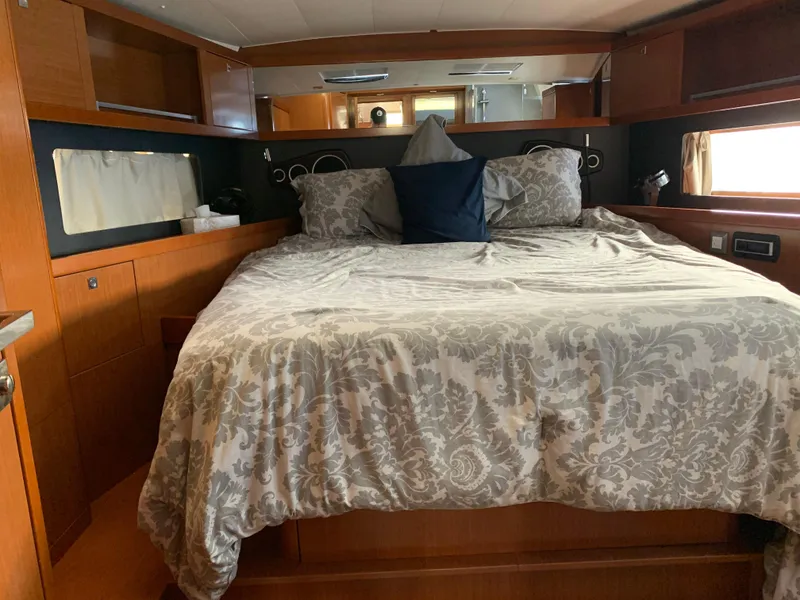

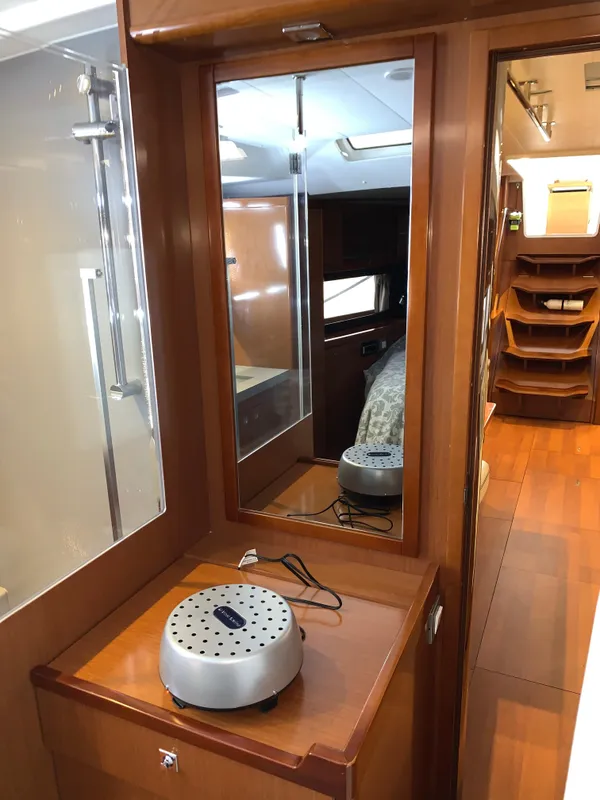

Master Stateroom - Forward
Headroom: 1.93 m / 6’4’’
Central double bed (2,10 m x 1,82 m x 1,14 m / 6’11’’ x 6’ x 3’9’’) Island bed type, mounted on gas struts
2 flexible and multi-directional reading lights at bedhead
1 full width mirror above bedhead
Hanger closets - Valet tray - Shelving - Base cabinet - Storage space under bed
1 chest of drawers, 4 drawers with sliding upper surface to function as either a desk or dressing table with a special built-in laptop stowage, built-in power socket. Removable seat with floor fixing system. Mirror on bulkhead above chest of drawers
Flush deck hatches with mosquito blind
2 Hull portholes with curtain
2 fixed windows to forward end of coachroof with built-in blinds
Central double bed (2,10 m x 1,82 m x 1,14 m / 6’11’’ x 6’ x 3’9’’) Island bed type, mounted on gas struts
2 flexible and multi-directional reading lights at bedhead
1 full width mirror above bedhead
Hanger closets - Valet tray - Shelving - Base cabinet - Storage space under bed
1 chest of drawers, 4 drawers with sliding upper surface to function as either a desk or dressing table with a special built-in laptop stowage, built-in power socket. Removable seat with floor fixing system. Mirror on bulkhead above chest of drawers
Flush deck hatches with mosquito blind
2 Hull portholes with curtain
2 fixed windows to forward end of coachroof with built-in blinds

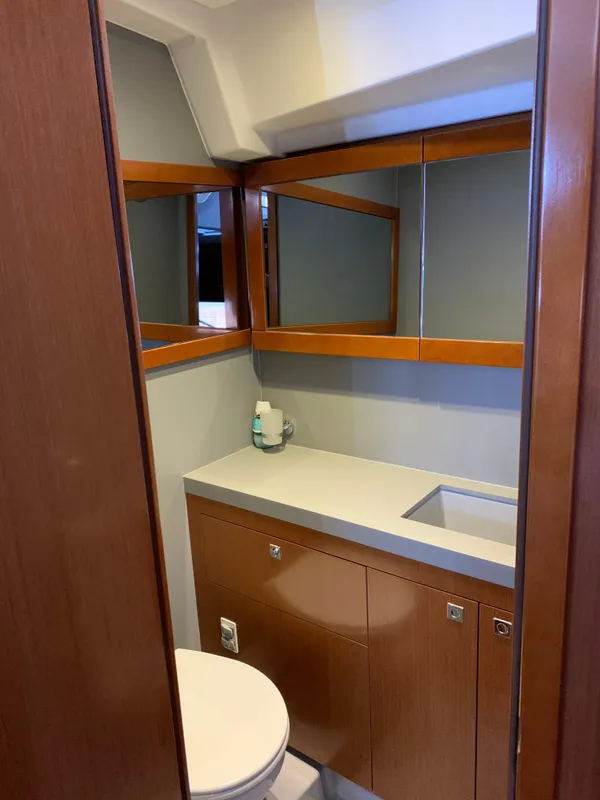

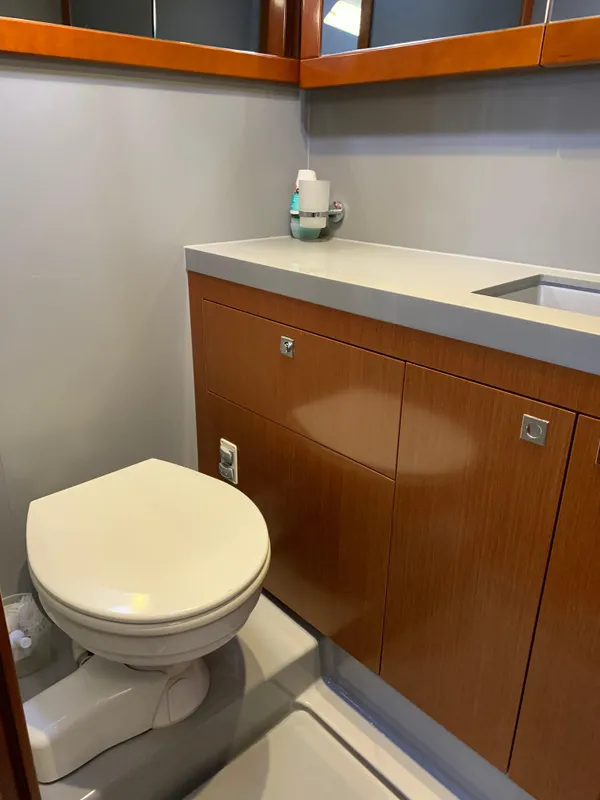

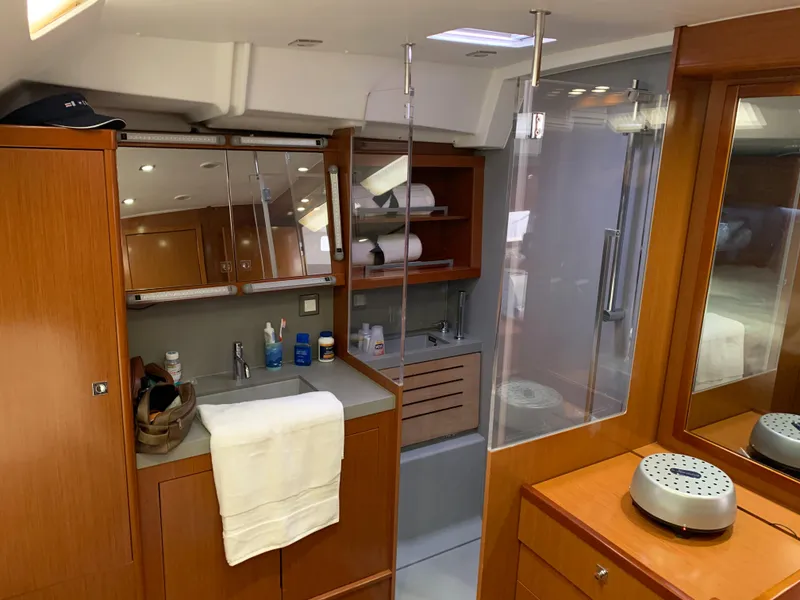

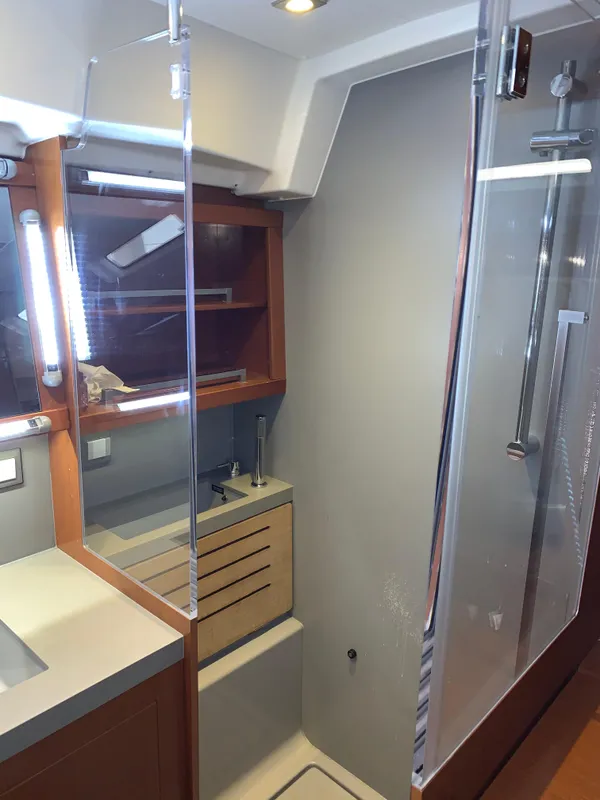

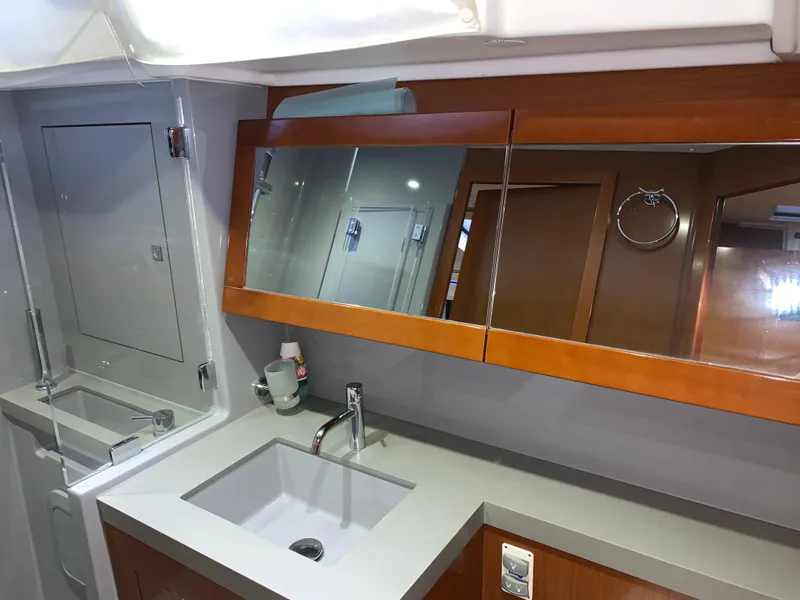

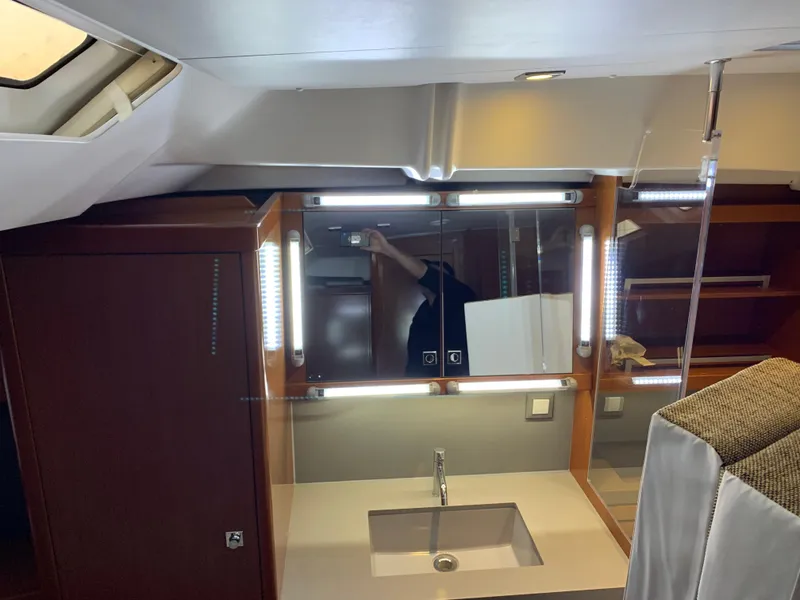

Master Head
Completely built in to the cabin with:
To starboard
• 1 Pearl grey GRP basin built into the grey Kerrock work surface, Hot/cold water mixer tap. Storage space under the basin, 2 shelves
• 1 Bathroom storage cabinet
• 1 Mirror
• 1 Glass shower cabin with flush access and stowage on the bulkhead, Grey Kerrok work surface with self-draining stowage tray. 1 Natural wood seat. Shower base in pearl grey GRP. Grey laminated bulkhead
• 1 Flush deck hatch with mosquito blind
To port:
• Separate manual marine WC
• 1 80 L / 21 US Gal rigid holding tank
• 1 Pearl grey GRP basin built into the grey Kerrock work surface, Hot/cold water mixer tap, with hose for use as shower
• Shower base in pearl grey GRP. Grey laminated bulkhead
• 1 Bathroom storage cabinet, Mirror
• Toilet accessories
• Storage space along the hull
• 1 Flush deck hatch with mosquito blind
To starboard
• 1 Pearl grey GRP basin built into the grey Kerrock work surface, Hot/cold water mixer tap. Storage space under the basin, 2 shelves
• 1 Bathroom storage cabinet
• 1 Mirror
• 1 Glass shower cabin with flush access and stowage on the bulkhead, Grey Kerrok work surface with self-draining stowage tray. 1 Natural wood seat. Shower base in pearl grey GRP. Grey laminated bulkhead
• 1 Flush deck hatch with mosquito blind
To port:
• Separate manual marine WC
• 1 80 L / 21 US Gal rigid holding tank
• 1 Pearl grey GRP basin built into the grey Kerrock work surface, Hot/cold water mixer tap, with hose for use as shower
• Shower base in pearl grey GRP. Grey laminated bulkhead
• 1 Bathroom storage cabinet, Mirror
• Toilet accessories
• Storage space along the hull
• 1 Flush deck hatch with mosquito blind
Aft Head
Headroom: 1.91 m / 6’3’’
Access through salon
Separate shower - 1 Hot/cold water mixer tap - Stowage on bulkhead - Grey Kerrok work surface with self-draining stowage tray.¨Shower base in pearl grey GRP
1 electric toilet
1 80 L / 21 US Gal rigid holding tank
Basin - 1 Hot/cold water mixer tap
1 Bathroom storage cabinet
Storage space under the basin
2 Mirrors
Toilet accessories
1 Opening portlight with curtains in side windows in the coaming
Access through salon
Separate shower - 1 Hot/cold water mixer tap - Stowage on bulkhead - Grey Kerrok work surface with self-draining stowage tray.¨Shower base in pearl grey GRP
1 electric toilet
1 80 L / 21 US Gal rigid holding tank
Basin - 1 Hot/cold water mixer tap
1 Bathroom storage cabinet
Storage space under the basin
2 Mirrors
Toilet accessories
1 Opening portlight with curtains in side windows in the coaming

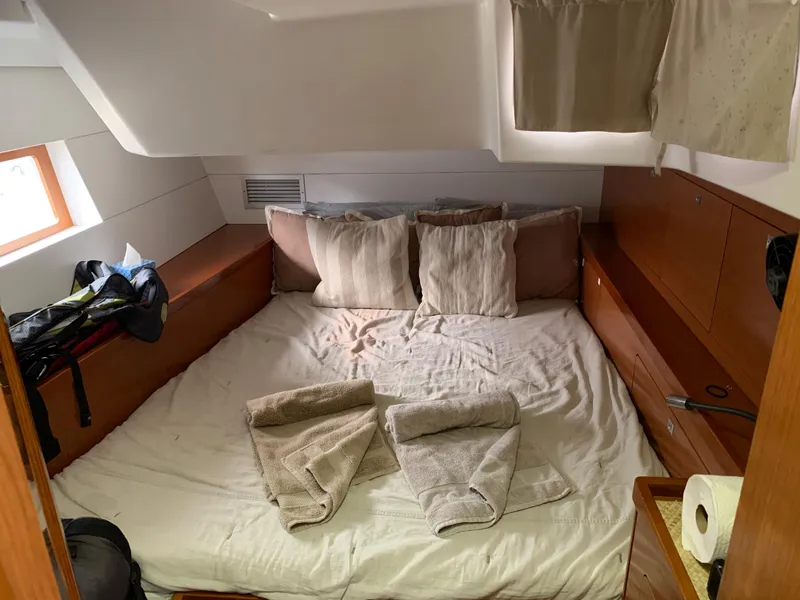

Starboard Aft Cabin
Headroom: 1.95 m / 6’5’’
1 Double bed (2,03 m x 1,37 m x 1,70 m / 6’8’’ x 4’6’’ x 5’7’’)
Cupboards, Hanging locker, Closed shelving, Stowage on both sides of berth
1 Large size hull port with curtain
1 Opening deck hatch with mosquito blind
1 Opening cockpit port with curtain
1 window onto cockpit - beneath the lounger
1 Double bed (2,03 m x 1,37 m x 1,70 m / 6’8’’ x 4’6’’ x 5’7’’)
Cupboards, Hanging locker, Closed shelving, Stowage on both sides of berth
1 Large size hull port with curtain
1 Opening deck hatch with mosquito blind
1 Opening cockpit port with curtain
1 window onto cockpit - beneath the lounger
Port Aft Cabin
Headroom: 1,95 m / 6’5’’
1 Double bed (2,03 m x 1,18 m x 1,50 m / 6’8’’ x 3’10’’ x 4’11’’)
1 Plenty of stowage space, Beam: 106 cm / 3’6’’. Upper part: 1/3 Hanging locker, 2/3 shelves. Lower part: Large drawers
Closed shelving, stowage along the length of the berth
Cupboards, Hanging locker, Closed shelving
1 Large size hull port with curtain
1 Opening deck hatch with mosquito blind
1 Opening cockpit port with curtain
1 window onto cockpit - beneath the lounger
1 Double bed (2,03 m x 1,18 m x 1,50 m / 6’8’’ x 3’10’’ x 4’11’’)
1 Plenty of stowage space, Beam: 106 cm / 3’6’’. Upper part: 1/3 Hanging locker, 2/3 shelves. Lower part: Large drawers
Closed shelving, stowage along the length of the berth
Cupboards, Hanging locker, Closed shelving
1 Large size hull port with curtain
1 Opening deck hatch with mosquito blind
1 Opening cockpit port with curtain
1 window onto cockpit - beneath the lounger

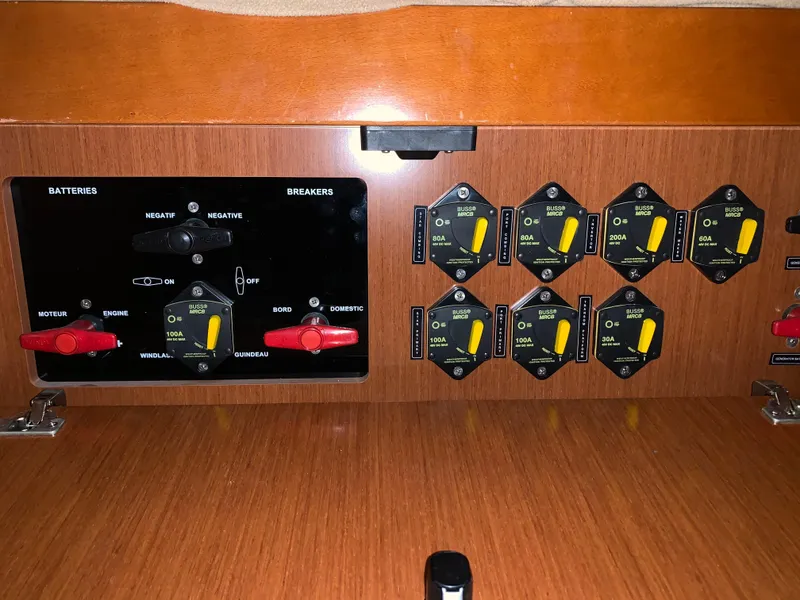

Electricity
12 V circuit
4 service batteries (140 Ah) - 1 Engine battery (110 Ah)
1 Power distributor
1 60 Ah Battery charger

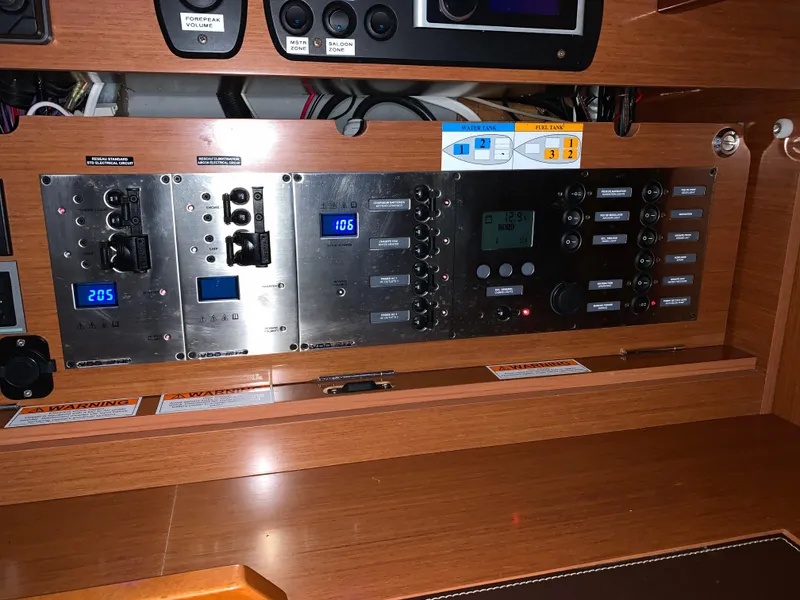

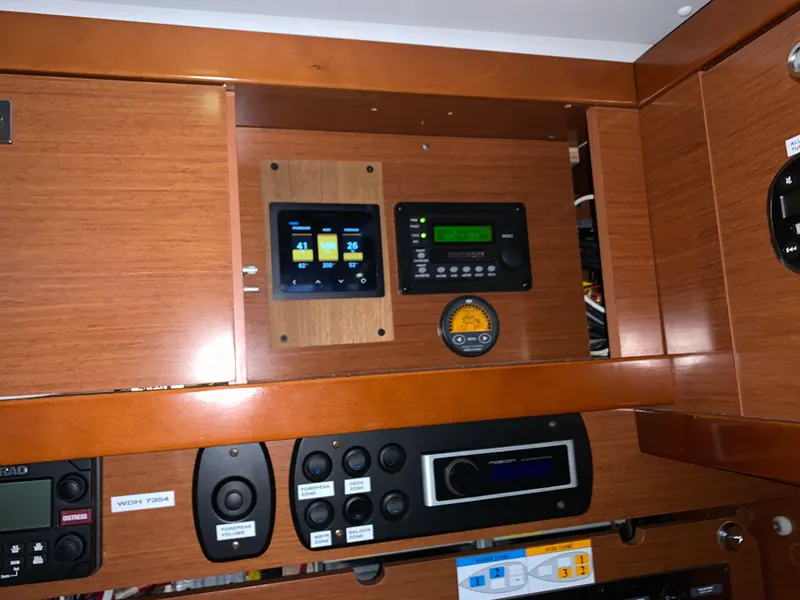

12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)
7 220 V Sockets
2 12 V Sockets
Lighting: Overhead lights - Reading lights - Reading light, flexible and multidirectional
Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Spreader light forward of mast - 1 Anchor light on masthead
Wire runs for options cables
4 service batteries (140 Ah) - 1 Engine battery (110 Ah)
1 Power distributor
1 60 Ah Battery charger
12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)
7 220 V Sockets
2 12 V Sockets
Lighting: Overhead lights - Reading lights - Reading light, flexible and multidirectional
Navigation lights: 1 Forward and aft navigation lights - 1 Engine navigation light / Spreader light forward of mast - 1 Anchor light on masthead
Wire runs for options cables
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Owner's personal items excluded. Exclusions include, however are not limited to, Seller's personal possessions, loose items, binoculars, handheld radio(s), charts, tools, fishing equipment, spare parts, clothing and foul weather gear, galley equipment, linens/bedding and any items not specifically listed on equipment list specifications sheet.
Engines
Yanmar 4JH4
Gallery (62 photos)
